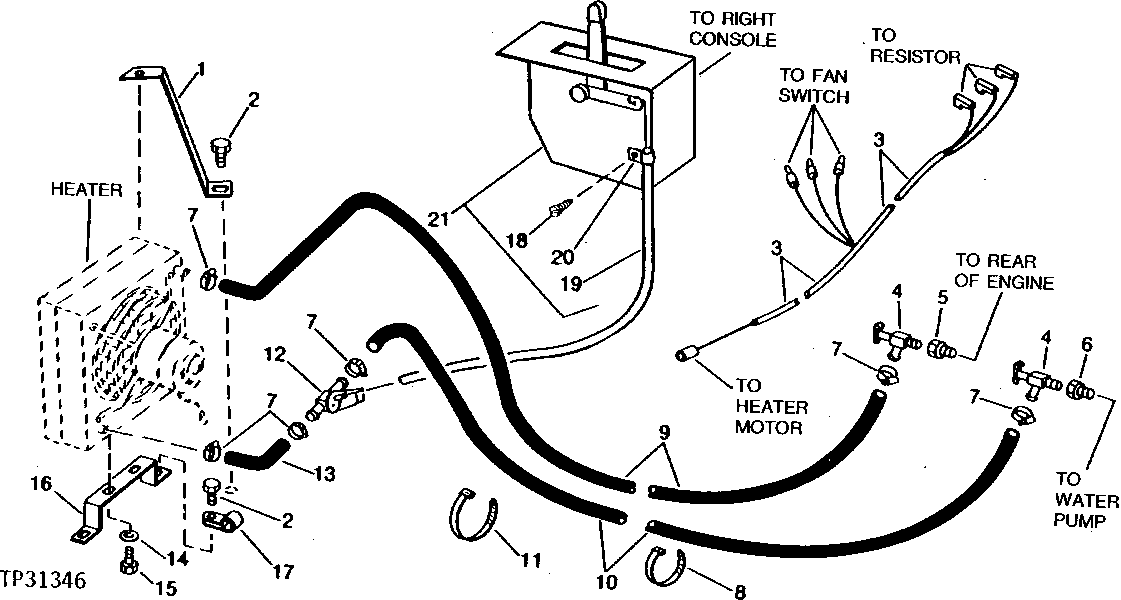

Запчасти John Deere 90D 15 - HEATER, VALVES AND HOSES 1830 - OPERATORS STATION 18

1

T108009

BRACE

1шт.

2

19M7784

SCREW

M10 X 20

3шт.

3

AT114761

WIRING HARNESS

1шт.

4

AT169553

DRAIN VALVE

(SUB FOR AT169553, THIS APPLICATION)

2шт.

5

15H576

PIPE BUSHING

3/8"

1шт.

6

15H586

ADAPTER FITTING

3/8"

1шт.

7

AR21837

CLAMP

6шт.

8

H77698

TIE BAND

1шт.

9

HOSE

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

10

HOSE

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

11

R44302

TIE BAND

2шт.

12

AT106294

SELECTIVE CONTROL VALVE

1шт.

13

T22942

HOSE

(SUB FOR T103706)

1шт.

14

24H1287

WASHER

9/32" X 5/8" X 0.065"

3шт.

15

19H1227

CAP SCREW

1/4" X 1/2"

3шт.

16

T108010

ANGLE

1шт.

17

T19935

CLAMP

HEATER FAN WIRING HARNESS TO CAB FLOOR AND TO RESISTOR MOUNTING LEG

2шт.

18

37H43

SCREW

1шт.

19

AT125441

PUSH PULL CABLE

1шт.

20

T115109

CLIP

1шт.

21

4240651

CONTROL

(SUB FOR AT125530)

1шт.

22

T38377

CLAMP

(NOT ILLUSTRATED) HEATER HOSES TO ENGINE COMPARTMENT

2шт.

19M7783

SCREW

M10 X 16, (NOT ILLUSTRATED)

2шт.

AH77869

CLIP

(NOT ILLUSTRATED) HEATER HOSES TO FRAME TAPPED BOSSES

2шт.

23

N189220

TIE BAND

(SUB FOR AA21510) (NOT ILLUSTRATED) (HEATER HOSE TO BOOM JUNCTION TUBE HOSES)

1шт.
