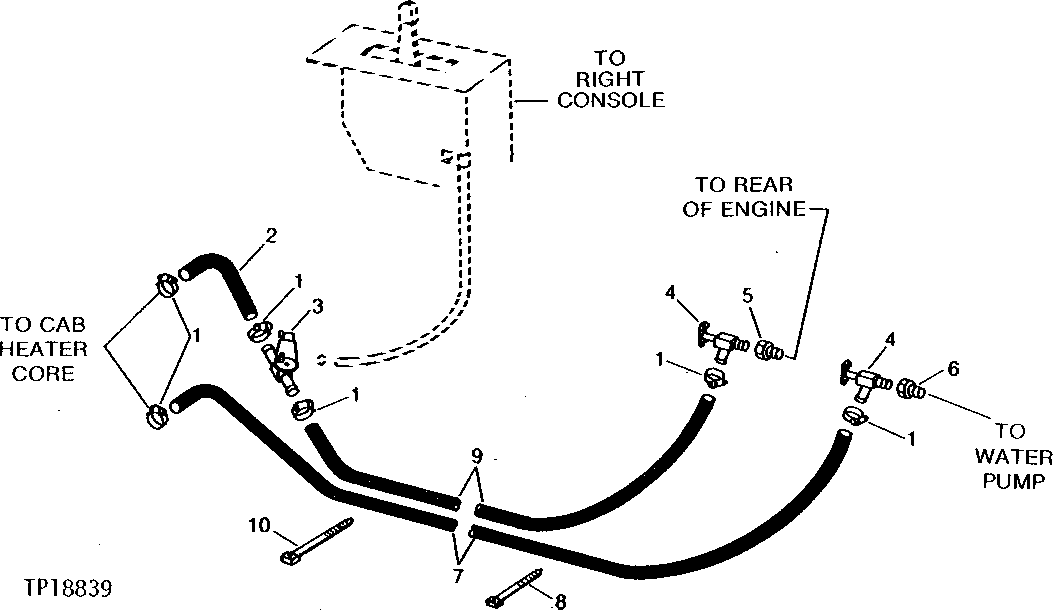

Запчасти John Deere 90D 13 - HEATER VALVES AND HOSES 1830 - OPERATORS STATION 18

1

AR21837

CLAMP

6шт.

2

T22942

HOSE

1шт.

3

AT106294

SELECTIVE CONTROL VALVE

1шт.

4

AT169553

DRAIN VALVE

(SUB FOR AT169553, THIS APPLICATION)

2шт.

5

15H576

PIPE BUSHING

3/8"

1шт.

15H562

PIPE PLUG

1", REAR OF ENGINE BLOCK (NO HEATER)

1шт.

6

15H586

ADAPTER FITTING

3/8"

1шт.

15H584

PIPE PLUG

1/2", WATER PUMP RETURN PORT (NO HEATER)

1шт.

7

HOSE

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

8

H77698

TIE BAND

4шт.

9

HOSE

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

10

R44302

TIE BAND

2шт.

11

T38377

CLAMP

(NOT ILLUSTRATED) HEATER HOSES TO FRAME AT FOUR LOCATIONS

6шт.

19M7783

SCREW

M10 X 16

2шт.
