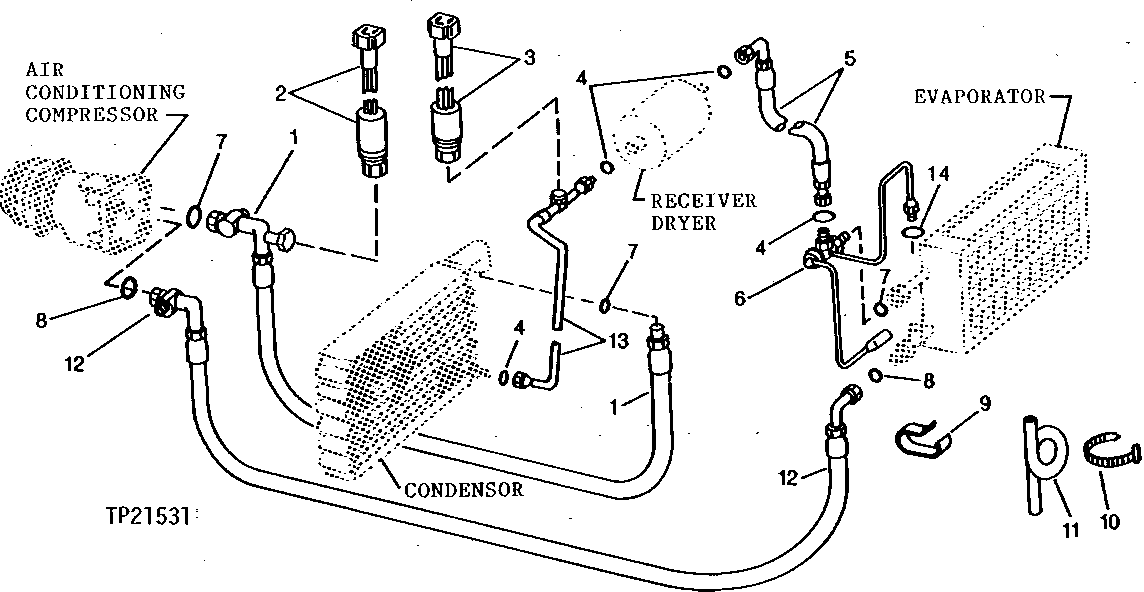

Запчасти John Deere 90D 8 - AIR CONDITIONER REFRIGERANT LINES AND HOSES 1830 - OPERATORS STATION 18

1

AT79349

REFRIGERANT HOSE

1шт.

H77698

TIE BAND

AIR CONDITIONING HOSE TO HEATER AND HYDRAULIC HOSES

1шт.

R44302

TIE BAND

COMPRESSOR HOSE TO HEATER HOSE

1шт.

2

AT63266

SWITCH

LOW PRESSURE

1шт.

3

AT63265

SWITCH

HIGH PRESSURE

1шт.

4

R10093

O-RING

4шт.

5

AT112280

REFRIGERANT HOSE

5/8" X 3 732 MM (147") X 5/8"

1шт.

T28603

CLIP

HOSE TO LEFT REAR OF BATTERY SUPPORT PLATE

1шт.

R46414

CLAMP

HOSE TO BOSSES INSIDE LEFT SKIRT

4шт.

19M7783

SCREW

M10 X 16

2шт.

6

AT62543

THERMOSTATIC CONTROL VALVE

1шт.

R34812

O-RING

COLD CONTROL PORT TO EVAPORATOR

1шт.

7

P51212

O-RING

2шт.

8

R33259

O-RING

2шт.

9

R66645

CLIP

1шт.

10

H77698

TIE BAND

2шт.

11

HOSE

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

AR21837

CLAMP

1шт.

12

AT112282

HOSE

7/8" X 3 126 MM (123") X 7/8"

1шт.

H77698

TIE BAND

AIR CONDITIONING HOSE TO FUEL AND HEATER HOSES

1шт.

28H1508

SPACER

0.493" X 0.675" X 1-1/4"

2шт.

T28603

CLIP

HOSE TO BOSS ON LEFT FRAME RAIL NEAR MAST

1шт.

19M7807

SCREW

M10 X 60

2шт.

13

AT112278

HOSE

1шт.

14

R34812

O-RING

1шт.
