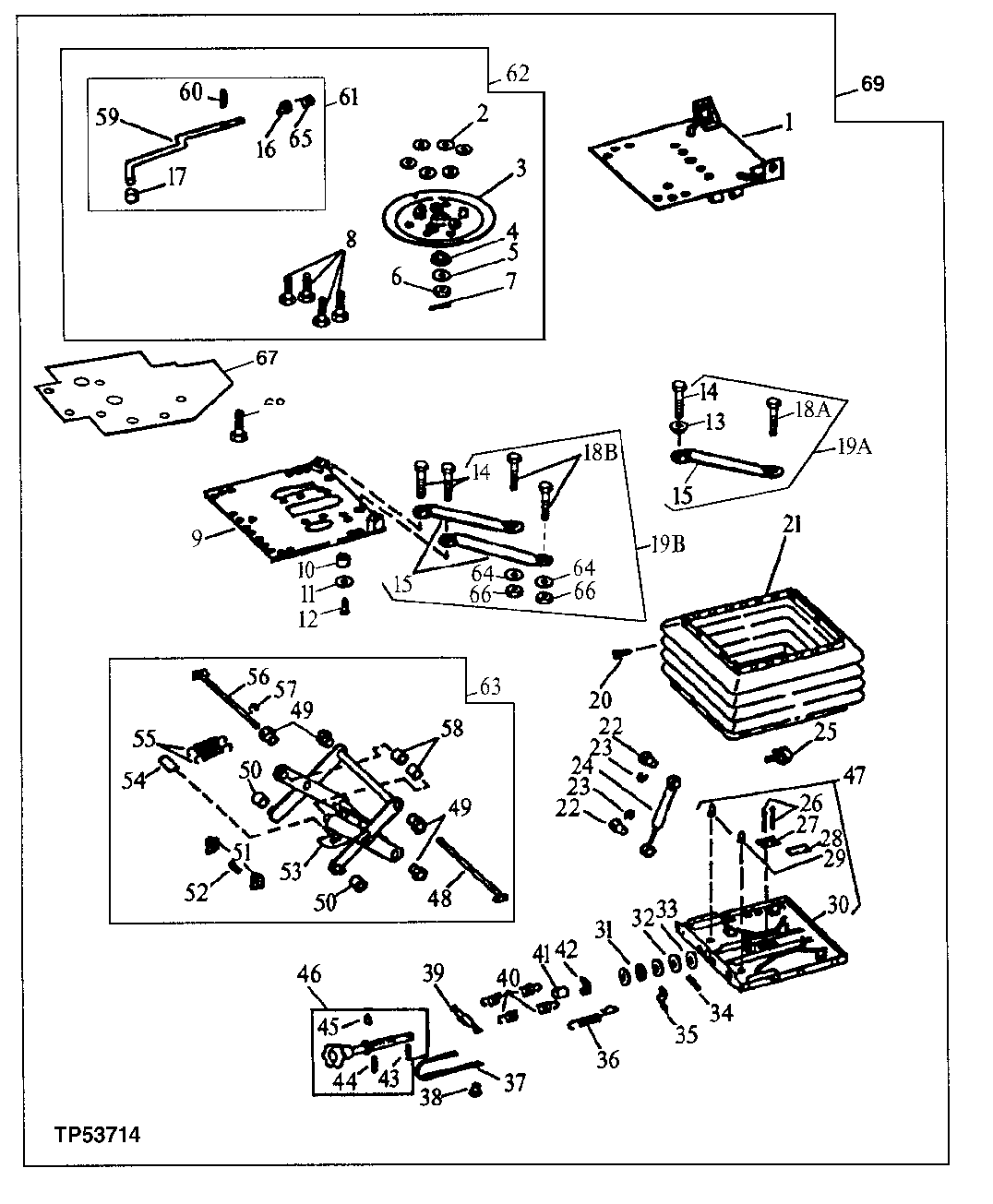

Запчасти John Deere 90D 6 - SEAT SUSPENSION BASE WITH TURNTABLE 1821 - OPERATORS STATION 18

1

AT169500

PLATE

(ALSO ORDER AT161675 AND T146639)

1шт.

2

AT107543

BUSHING

(SUB FOR AT107600) (SET OF 6 BUSHINGS AND BEARINGS)

6шт.

3

AT84216

PLATE

1шт.

4

T82221

WASHER

1шт.

5

R39129

THRUST WASHER

1шт.

6

14M7179

NUT

M16, (ALSO ORDER AT107543)

1шт.

7

11M7083

COTTER PIN

1шт.

8

19M8163

BOLT

M8 X 16

4шт.

9

AT161675

PLATE

(SUB FOR AT84229) (ALSO ORDER AT169500 AND T146639)

1шт.

10

L42040

BUMPER

(SUB FOR T82243)

1шт.

11

T82226

SPACER

1шт.

12

L42039

RIVET

(SUB FOR AT84230)

1шт.

13

L36255

WASHER

1шт.

14

19H3150

CAP SCREW

7/16" X 3/4"

ARшт.

15

SEAT BELT

ARшт.

16

T82218

PAWL

1шт.

17

T82217

KNOB

1шт.

18A

L36290

CAP SCREW

1шт.

18B

19H3547

CAP SCREW

7/16" X 1"

2шт.

19A

SEAT BELT

( AT84231 NO LONGER AVAILABLE) (SUB AT160627)

2шт.

19B

AT160627

KIT

1шт.

20

L38892

PLUG

(SUB FOR T82241)

36шт.

21

AL36686

BOOT

(SUB FOR T82242)

1шт.

22

L63562

PIN FASTENER

(SUB FOR T82233 AND L38889)

2шт.

23

40M7041

SNAP RING

2шт.

24

AT84224

SHOCK ABSORBER

1шт.

25

AL38526

FORK

(SUB FOR AT84220)

1шт.

26

AT44188

RIVET

2шт.

27

L38891

RAIL

(SUB FOR T82222)

1шт.

28

L38890

PLATE

(SUB FOR T82223)

1шт.

29

L25678

BUMPER

2шт.

30

AT84219

PLATE

1шт.

31

JD10212

BALL BEARING

(SUB FOR AT84221)

2шт.

32

24H1657

WASHER

21/64" X 1-1/4" X 7/64"

1шт.

33

B28163

WASHER

1шт.

34

L38851

ROLLER

(SUB FOR T82228)

1шт.

35

L38847

GUIDE

(SUB FOR T82229)

1шт.

36

L38866

EXTENSION SPRING

(SUB FOR T82230)

1шт.

37

T82231

TIE BAND

1шт.

38

L38857

PLUG

(SUB FOR T82232)

2шт.

39

AL36643

RETAINER

(SUB FOR AT84222)

1шт.
