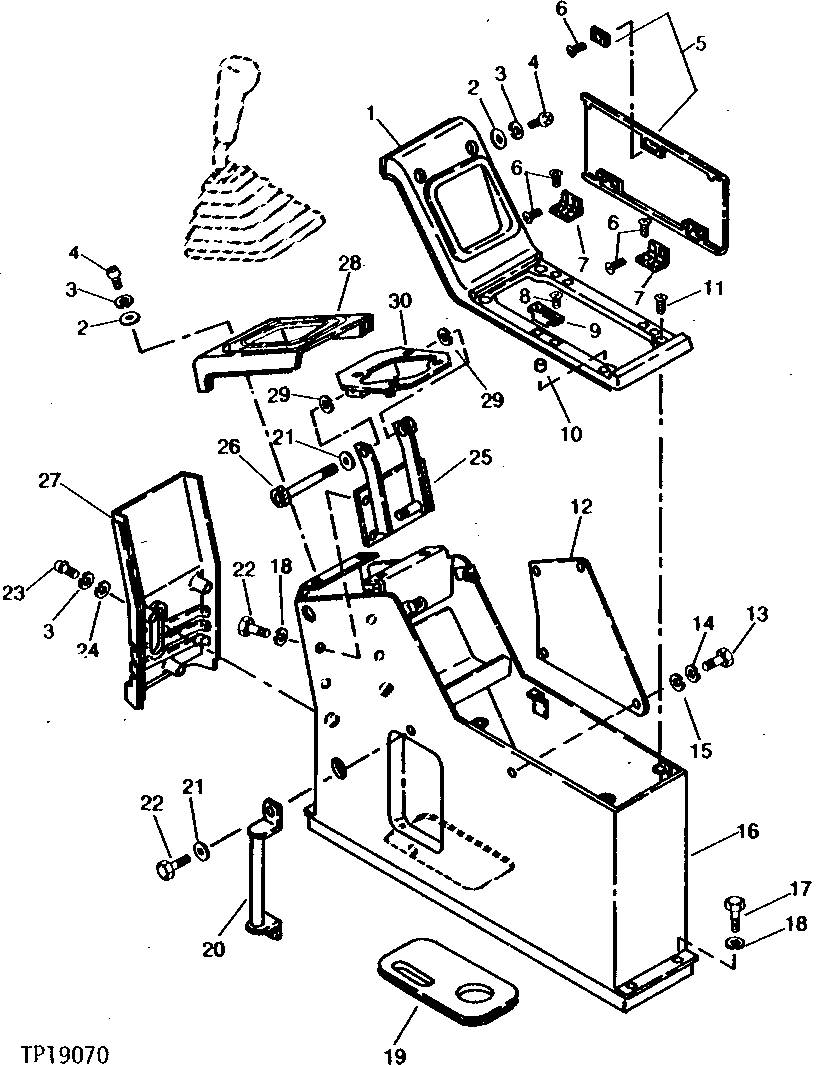

Запчасти John Deere 90D 20 - LEFT CONSOLE 1810 - OPERATORS STATION 18

1

5002029

COVER

(SUB FOR TH108501)

1шт.

2

24M7054

WASHER

6.400 X 12 X 1.600 MM

6шт.

3

12M7006

LOCK WASHER

6 MM

6шт.

4

SCREW

6шт.

5

7017989

COVER

(SUB FOR TH108504)

1шт.

6

21M7404

SCREW

(SUB FOR TH108507)

9шт.

7

4199401

HINGE

(SUB FOR TH108506)

2шт.

8

SCREW

2шт.

9

4199403

MAGNET

(SUB FOR TH108505)

1шт.

10

4208354

BUMPER

(SUB FOR TH108508)

2шт.

11

CAP SCREW

(M10 X 60) ( 19M5536 NO LONGER AVAILABLE)

4шт.

12

4200807

COVER

(SUB FOR TH108500)

1шт.

13

19M8425

CAP SCREW

M6 X 16, (SUB FOR 19M7560)

4шт.

14

12M7006

LOCK WASHER

6 MM

4шт.

15

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

4шт.

16

8039032

STAND

(SUB FOR TH108499)

1шт.

17

CAP SCREW

4шт.

18

12M7066

LOCK WASHER

10 MM

8шт.

19

4200658

GROMMET

(SUB FOR TH108496)

1шт.

20

9728240

SUPPORT

(SUB FOR TH108511)

1шт.

21

24M7240

WASHER

13 X 25 X 3 MM

3шт.

22

19M7938

CAP SCREW

M10 X 20

6шт.

23

SCREW

3шт.

24

WASHER

3шт.

25

8038101

BRACKET

(SUB FOR TH108510)

1шт.

26

SCREW

1шт.

27

1010900

COVER

(SUB FOR TH108503)

1шт.

28

1010967

COVER

(SUB FOR TH108502)

1шт.

29

4191947

SHIM

(SUB FOR TH108494)

2шт.

30

8038104

BRACKET

(SUB FOR TH108509)

1шт.
