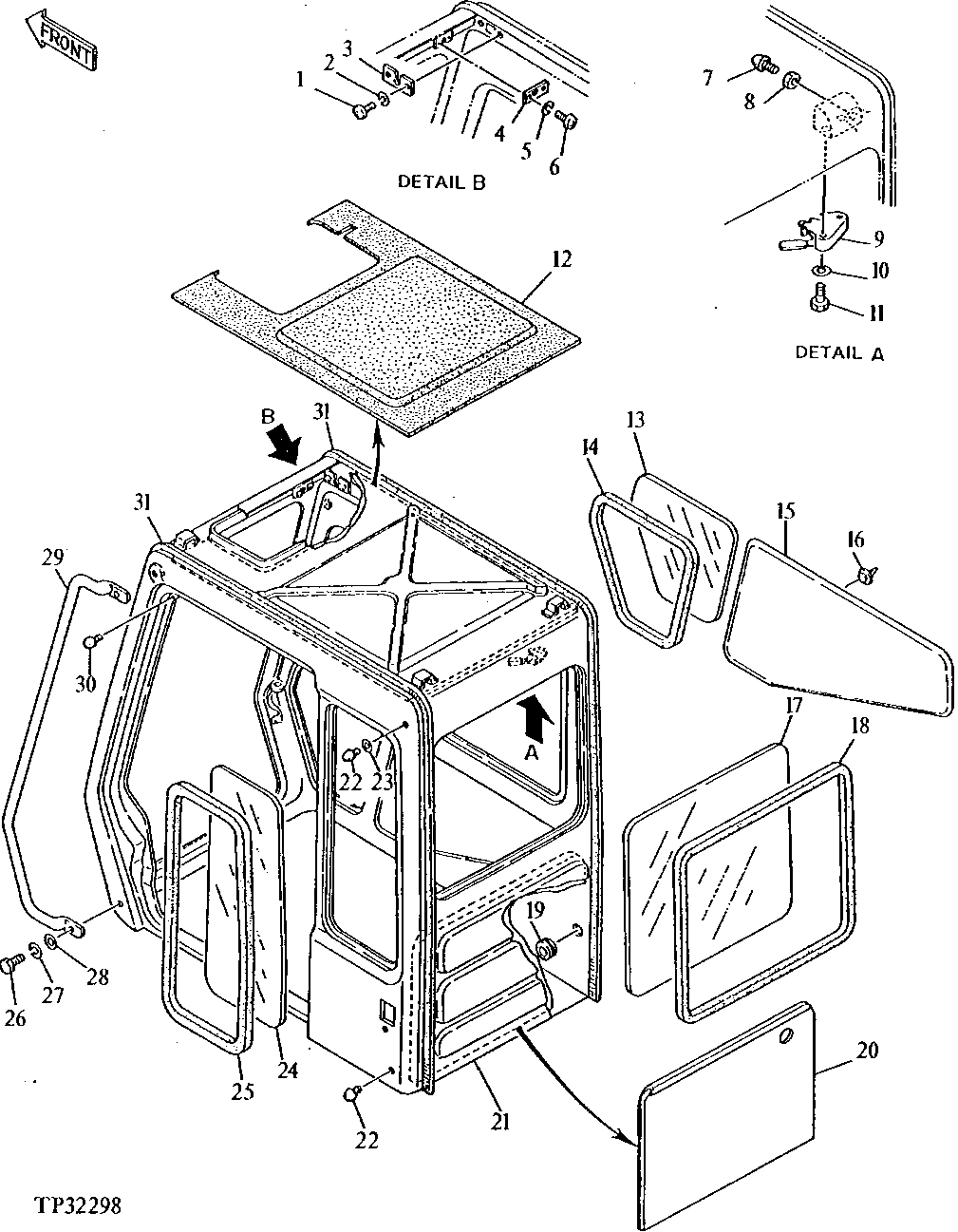

Запчасти John Deere 90D 14 - CAB SHELL, HAND RAIL, HEADLINER, RIGHT LOWER WINDOW, REAR WINDOW, TRIM PADS AND LEFT WINDOW 1810 - OPERATORS STATION 18

1

21M7396

SCREW

M4 X 10

2шт.

2

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

2шт.

3

4204599

SHIM

(SUB FOR TH108682)

1шт.

4

4204600

BRACKET

(SUB FOR TH108683)

1шт.

5

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

2шт.

6

21M7394

SCREW

M3 X 10

2шт.

7

4204586

BUMPER

(SUB FOR TH108668)

1шт.

8

14M7152

NUT

M10

1шт.

9

4204594

LOCK

(SUB FOR TH108677)

1шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

11

19M7932

CAP SCREW

M8 X 16, (SUB FOR 19M7162)

2шт.

12

4251703

SEALING TRIM

(SUB FOR AT128328)

1шт.

13

TH108654

WINDOWPANE

1шт.

14

4204571

ISOLATOR

(SUB FOR TH108653)

1шт.

15

4204606

PAD

(SUB FOR TH108689)

1шт.

16

4204607

CLIP

(SUB FOR TH108690)

10шт.

17

TH108656

WINDOWPANE

1шт.

18

4204573

ISOLATOR

(SUB FOR TH108655)

1шт.

19

4204608

GROMMET

(SUB FOR TH108691)

1шт.

20

4251706

SEALING TRIM

(SUB FOR AT128331)

1шт.

21

4196647J

CAB

(SUB FOR AT115074) (ALSO ORDER AT148303, T71441, T71442, (3) 19M7560, (3) 12M7006) (SUB FOR AT114976 OR 4196647)

1шт.

22

4204586

BUMPER

(SUB FOR TH108668)

2шт.

23

4204587

WASHER

(SUB FOR TH108669)

1шт.

24

TH108657

WINDOWPANE

1шт.

25

4204576

ISOLATOR

(SUB FOR TH108658)

1шт.

26

19M7402

CAP SCREW

2шт.

19M7662

CAP SCREW

2шт.

27

12M7066

LOCK WASHER

10 MM

2шт.

28

24M7239

WASHER

10.700 X 21 X 2.500 MM

2шт.

29

4248589J

HANDRAIL

(SUB FOR AT128352 OR 4248589)

1шт.

HANDRAIL

(SUB AT128352) (ALSO ORDER 19M7662) ( TH108692 NO LONGER AVAILABLE)

1шт.

30

4172321

BUMPER

(SUB FOR TH108666)

1шт.

31

4204611

MOLDING

(SUB FOR TH108694)

2шт.
