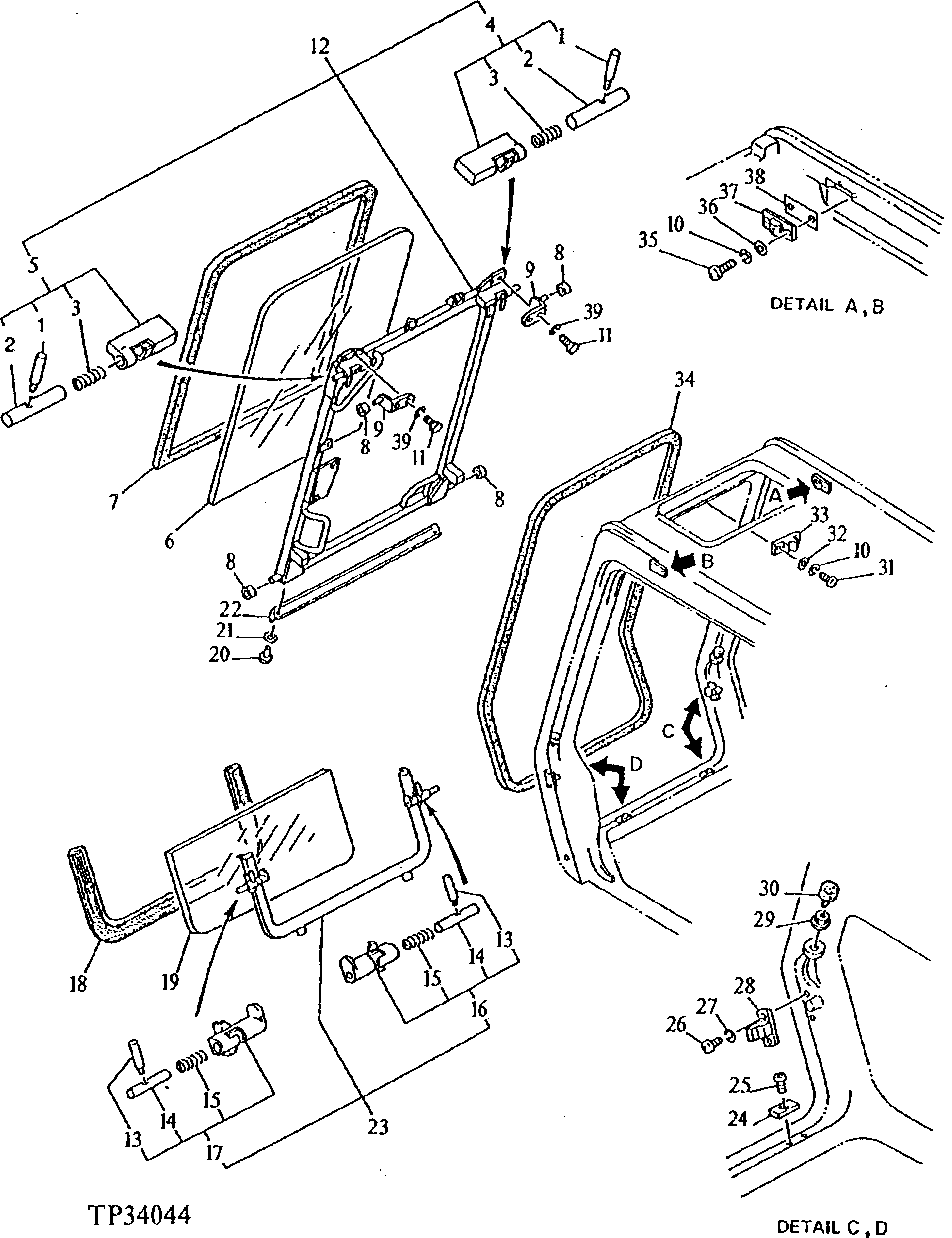

Запчасти John Deere 90D 8 - CAB WINDSHIELD 1810 - OPERATORS STATION 18

1

4204548

LEVER

(SUB FOR TH108627)

2шт.

2

4204556

PIN

(SUB FOR TH108635)

2шт.

3

494918

SPRING

(SUB FOR TH106783)

2шт.

4

LOCK

1шт.

5

LOCK

1шт.

6

TH108641

WINDOWPANE

1шт.

7

4204560

ISOLATOR

(SUB FOR TH108640)

1шт.

8

4204558

ROLLER

(SUB FOR TH108638)

4шт.

9

4204557

BRACKET

(SUB FOR TH108637)

2шт.

10

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

6шт.

11

19M7139

CAP SCREW

M8 X 20

4шт.

12

4204553

FRAME

(SUB FOR TH108633)

1шт.

13

4204548

LEVER

(SUB FOR TH108627)

2шт.

14

4204547

PIN

(SUB FOR TH108626)

2шт.

15

4204546

SPRING

(SUB FOR TH108625)

2шт.

16

LOCK

1шт.

17

LOCK

1шт.

18

4204549

ISOLATOR

(SUB FOR TH108629)

1шт.

19

TH108630

WINDOWPANE

1шт.

20

37M7095

SCREW

4шт.

21

24M7029

SHIM

0.500 MM

4шт.

22

4204559

ISOLATOR

(SUB FOR TH108639)

1шт.

23

4204543

FRAME

(SUB FOR TH108623) WITHOUT GLASS OR SEAL

1шт.

24

4204551

BUSHING

(SUB FOR TH108631)

2шт.

25

21M7420

SCREW

M6 X 16

2шт.

26

21M7246

SCREW

M6 X 16

4шт.

27

12M7006

LOCK WASHER

6 MM

4шт.

28

4204552

STOP

(SUB FOR TH108632)

2шт.

29

14M7152

NUT

M10

2шт.

30

4294508

BUMPER

(SUB FOR TH108642) (SUB FOR AT201032)

2шт.

31

21M7192

SCREW

M8 X 16

2шт.

32

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

33

4204564

STOP

(SUB FOR TH108644)

1шт.

34

4204565

ISOLATOR

(SUB FOR TH108645)

1шт.

35

21M7192

SCREW

M8 X 16

4шт.

36

24M7055

WASHER

8.400 X 16 X 1.600 MM

4шт.

37

4204595

SHIM

(SUB FOR TH108678)

2шт.

38

SHIM

(A) 1.0 ( TH108678 NO LONGER AVAILABLE)

1шт.

SHIM

(A) 1.2 ( TH108680 NO LONGER AVAILABLE)

1шт.

SHIM

(A) 1.6 ( TH108681 NO LONGER AVAILABLE)

1шт.

39

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.
