Запчасти John Deere 90D 6 - CAB DOOR 1810 - OPERATORS STATION 18

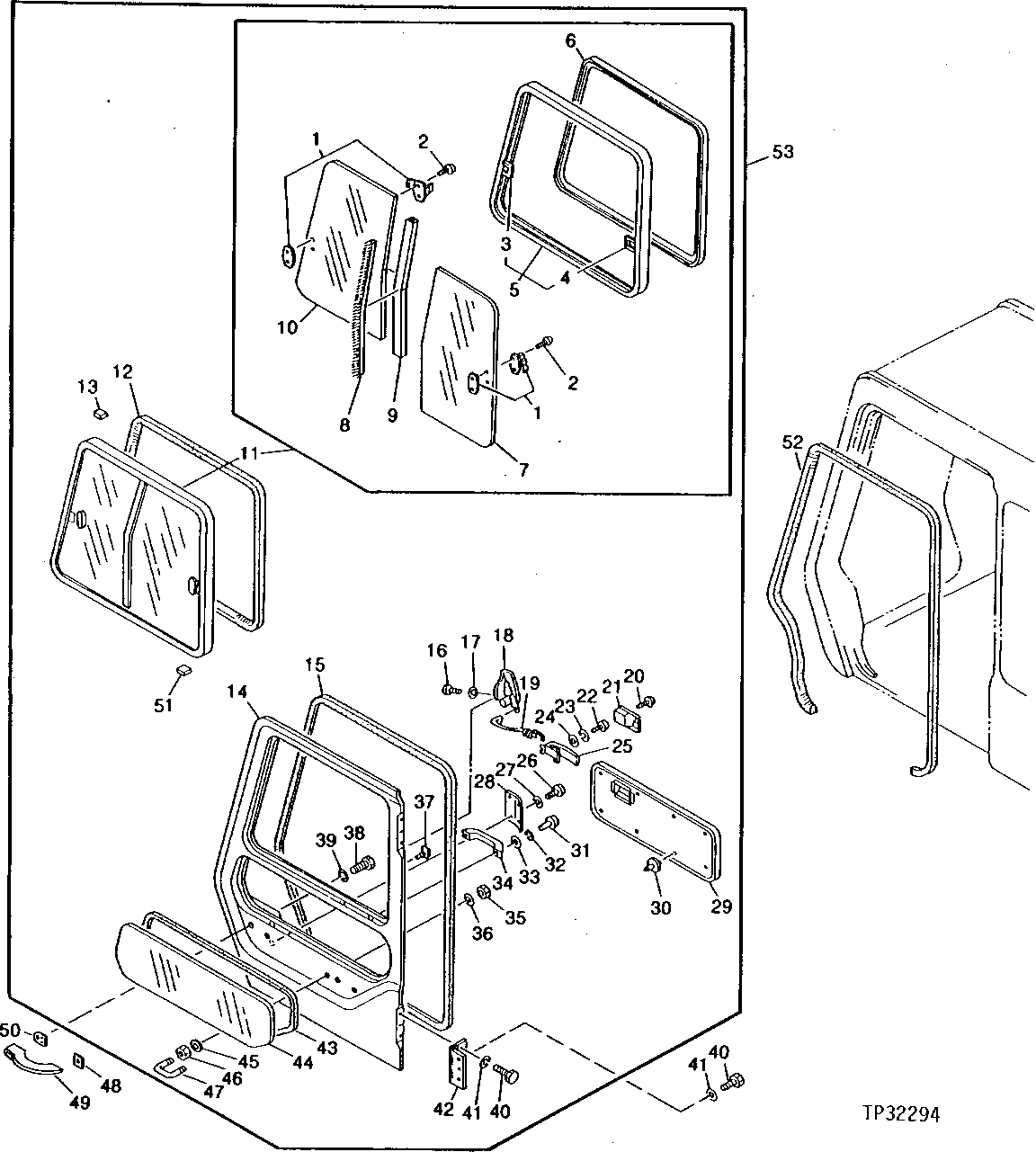

Схема запчастей John Deere 90D - 6 - CAB DOOR 1810 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

4369653

LOCK

(SUB FOR TH106626, 4295610 AND 4141713)

2шт.

2

37M7100

SCREW

4шт.

3

CATCH

(SUB TH108718)

1шт.

4

CATCH

(SUB TH108718)

1шт.

5

4204627

FRAME

(SUB FOR TH108718)

1шт.

6

4204628

RUNNER

(SUB FOR TH108721)

1шт.

7

TH108723

WINDOWPANE

1шт.

8

4231413

WEATHERSTRIP

(SUB FOR TH108725) (SUB FOR TH111880)

1шт.

9

4204631

FRAME

(SUB FOR TH108724)

1шт.

10

TH108722

WINDOWPANE

1шт.

11

WINDOW

ASSEMBLY (ORDER COMPONENTS)

1шт.

12

MOLDING

(SUB FOR TH108726) (MAKE FROM TH108667 BULK MATERIAL, CUT TO LENGTH)

1шт.

13

4204567

SPACER

(SUB FOR TH108647)

3шт.

14

DOOR

(SUB AT90601)

1шт.

15

4204620

WEATHERSTRIP

(SUB FOR TH108713)

1шт.

16

21M7246

SCREW

(SUB FOR TH102157)

3шт.

17

12M7006

LOCK WASHER

6 MM

3шт.

18

4128454

LOCK

(SUB FOR TH101151)

1шт.

19

4204613

ROD

(SUB FOR TH108704)

1шт.

20

21M7396

SCREW

1шт.

21

4204619

COVER

(SUB FOR TH108712)

1шт.

22

21M7246

SCREW

(SUB FOR TH102157)

2шт.

23

12M7006

LOCK WASHER

6 MM

2шт.

24

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

25

4204614

LEVER

(SUB FOR TH108705)

1шт.

26

21M7278

SCREW

M5 X 10

4шт.

27

12M7064

LOCK WASHER

5 MM

4шт.

28

4204616

COVER

(SUB FOR TH108707)

1шт.

29

4204618

PAD

(SUB FOR TH108711)

1шт.

30

4204607

CLIP

(SUB FOR TH108690)

8шт.

31

21M7246

SCREW

(SUB FOR TH102157)

2шт.

32

12M7006

LOCK WASHER

6 MM

2шт.

33

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

34

4204579

HANDLE

(SUB FOR TH108661)

1шт.

35

14M7444

NUT

M10

4шт.

36

12M7066

LOCK WASHER

10 MM

2шт.

37

4204621

PLUG

(SUB FOR TH108714)

38шт.

38

19M8425

CAP SCREW

M6 X 16, (USE WITH AR91895) (SUB FOR 19M7560)

3шт.

39

12M7006

LOCK WASHER

6 MM, (USE WITH AR91895)

3шт.

40

19M7402

CAP SCREW

M10 X 25

6шт.

41

12M7066

LOCK WASHER

10 MM

6шт.

42

4204633

HINGE

(SUB FOR TH108728)

2шт.

43

4204625

ISOLATOR

(SUB FOR TH108716)

1шт.

44

TH108715

WINDOWPANE

1шт.

45

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

46

14M7444

NUT

M10, (SUB FOR TH108709)

4шт.

47

4204617

U-BOLT

(SUB FOR TH108708)

1шт.

48

T71442

GROMMET

1шт.

49

AT148303

HANDLE

(SUB FOR AR91895 AND RE35161) (ALSO ORDER 19H2721 AND 14H786)

1шт.

50

T71441

GROMMET

1шт.

51

4147896

SPACER

(SUB FOR TH108646)

8шт.

52

MOLDING

(MAKE FROM TH108667 BULK MATERIAL, CUT TO LENGTH)

1шт.

53

4236287

DOOR

(ALSO ORDER AT148303, T71441, T71442, (3) 19M7560 AND (3) 12M7006) (SUB FOR AT90601)

1шт.

Выбрано товаров: 53
