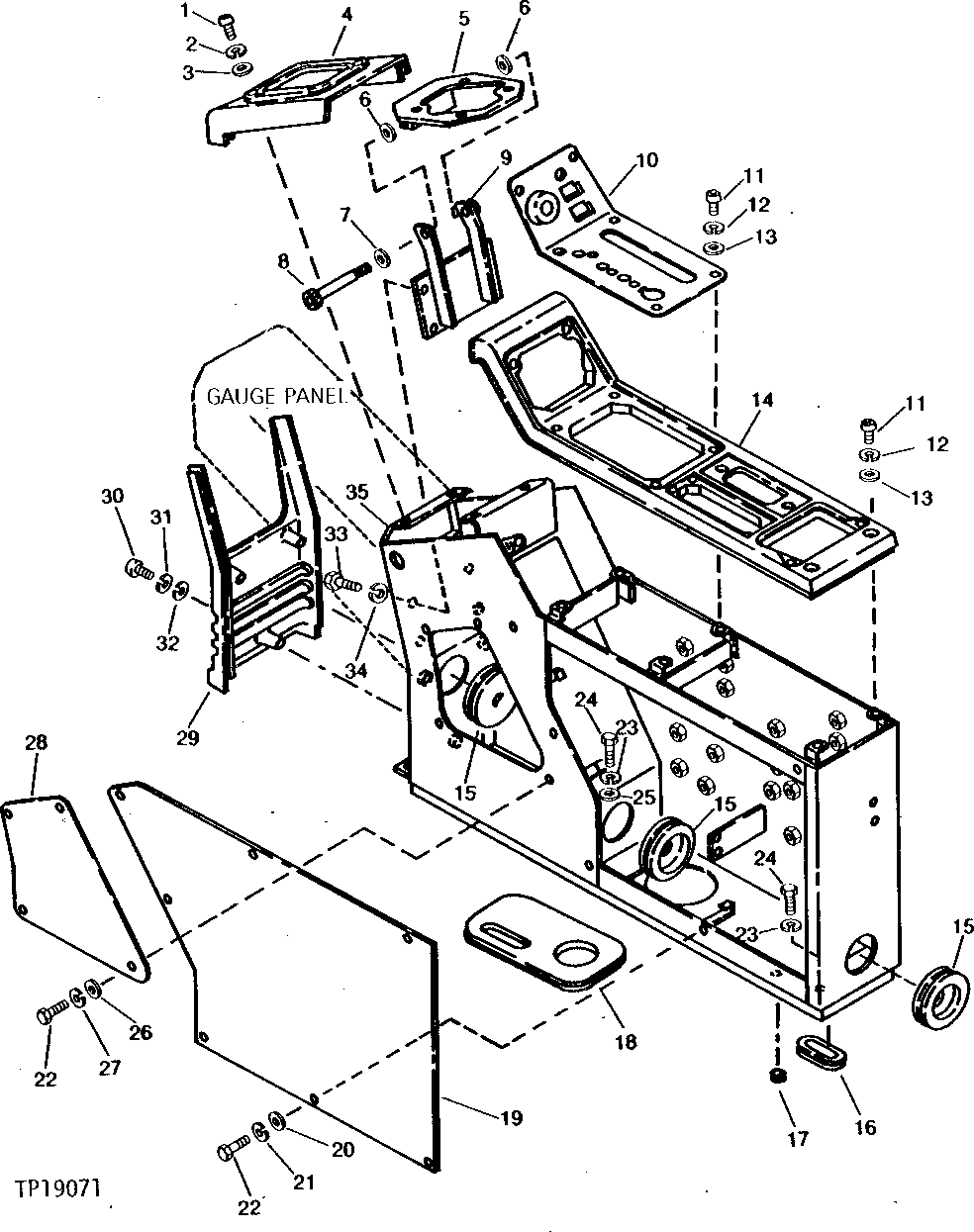

Запчасти John Deere 90D 2 - RIGHT CONSOLE 1810 - OPERATORS STATION 18

1

21M7296

SCREW

M6 X 20

4шт.

2

12M7066

LOCK WASHER

10 MM, (SUB FOR TH103470)

4шт.

3

24M7054

WASHER

(SUB FOR TH100584)

4шт.

4

1010966

COVER

(SUB FOR TH108488)

1шт.

5

8038104

BRACKET

(SUB FOR TH108492) (SUB FOR TH108509)

1шт.

6

4191947

SHIM

(SUB FOR TH108494)

2шт.

7

24M7240

WASHER

13 X 25 X 3 MM

1шт.

8

19M8442

SCREW

1шт.

9

8038102

BRACKET

(SUB FOR TH108493)

1шт.

10

8038060

PANEL

(SUB FOR AT114985)

1шт.

11

21M7246

SCREW

M6 X 16, (SUB FOR TH100583)

8шт.

12

12M7066

LOCK WASHER

10 MM, (SUB FOR TH103470)

8шт.

13

24M7054

WASHER

(SUB FOR TH100584)

8шт.

14

5002033

PANEL

(SUB FOR TH108487)

1шт.

15

4161992

GROMMET

(SUB FOR TH108491)

3шт.

16

4205083

GROMMET

(SUB FOR TH108495)

1шт.

17

487081

GROMMET

(SUB FOR TH108081)

1шт.

18

4200658

GROMMET

(SUB FOR TH108496)

1шт.

19

3037903

COVER

(SUB FOR TH108485)

1шт.

20

24M7250

WASHER

6.400 X 17 X 3 MM, (SUB FOR TH100560)

7шт.

21

12M7006

LOCK WASHER

6 MM

7шт.

22

J900614

BOLT

(SUB FOR TH104056)

11шт.

23

12M7066

LOCK WASHER

10 MM

6шт.

24

CAP SCREW

6шт.

25

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

26

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

4шт.

27

12M7006

LOCK WASHER

6 MM

4шт.

28

4191972

COVER

(SUB FOR TH108486)

1шт.

29

1010899

COVER

(SUB FOR TH108489)

1шт.

30

SCREW

3шт.

31

12M7066

LOCK WASHER

10 MM, (SUB FOR TH103470)

3шт.

32

24M7054

WASHER

(SUB FOR TH100584)

3шт.

33

19M7938

CAP SCREW

M10 X 20

4шт.

34

12M7066

LOCK WASHER

10 MM

4шт.

35

8039031

STAND

(SUB FOR TH108484)

1шт.
