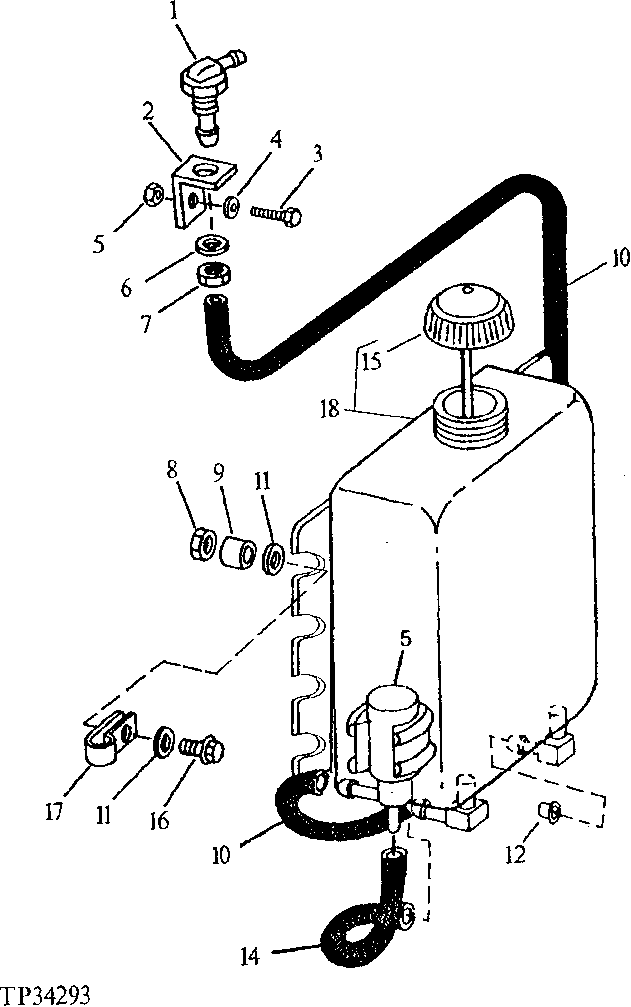

Запчасти John Deere 90D 1A - FRONT WINDOW WASHER 1810 - OPERATORS STATION 18

1

AT151008

KIT

(SUB FOR AT69505) (USE WITH T53279) (USE IF AVAILABLE)

1шт.

AT151008

KIT

(SUB FOR AT69505) (USE WITH T140755)

1шт.

2

T53279

ANGLE

(USE WITH AT69505)

1шт.

T140755

ANGLE

(USE WITH AT151008)

1шт.

3

19M7862

SCREW

M6 X 20

1шт.

4

24H1136

WASHER

11/32" X 11/16" X 0.065"

1шт.

5

28H1882

SPACER

1шт.

6

24H1821

WASHER

9/32" X 47/64" X 1/16"

4шт.

7

14M7166

LOCK NUT

M8

1шт.

8

14M7165

LOCK NUT

M6

4шт.

9

28H1495

SPACER

4шт.

10

HOSE

(MAKE FROM R120653 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R54445 AND R104595)

1шт.

11

24H1646

WASHER

17/64" X 3/4" X 0.060"

8шт.

12

T140903

PLUG

1шт.

13

AT106365

PUMP

1шт.

14

HOSE

(MAKE FROM R120653 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R54445 AND R104595)

1шт.

15

AT106413

CAP

1шт.

16

19M8321

SCREW

M6 X 45

4шт.

17

T19935

CLAMP

1шт.

18

T147618

TANK

(SUB FOR T129505)

1шт.
