2 - AUXILIARY COUNTERWEIGHT

Запчасти John Deere 90D 2 - AUXILIARY COUNTERWEIGHT 1749 - FRAMES, CHASSIS OR SUPPORTING STRUCTURE 17

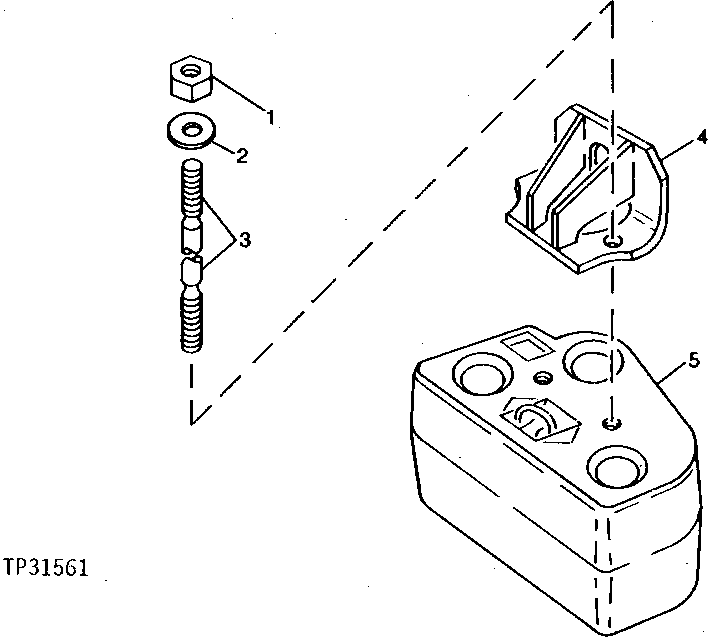

Схема запчастей John Deere 90D - 2 - AUXILIARY COUNTERWEIGHT 1749 - FRAMES, CHASSIS OR SUPPORTING STRUCTURE 17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14M7278

NUT

M24

4шт.

2

24M7243

WASHER

25.400 X 50 X 6 MM

4шт.

3

STUD

( T78434 NO LONGER AVAILABLE) (WITH TWO COUNTERWEIGHTS)

4шт.

T78435

ROD

(WITH FOUR COUNTERWEIGHTS)

4шт.

4

AT139402

BRACKET

2шт.

5

COUNTERWEIGHT

( T79454 - USE IF AVAILABLE)

2шт.
