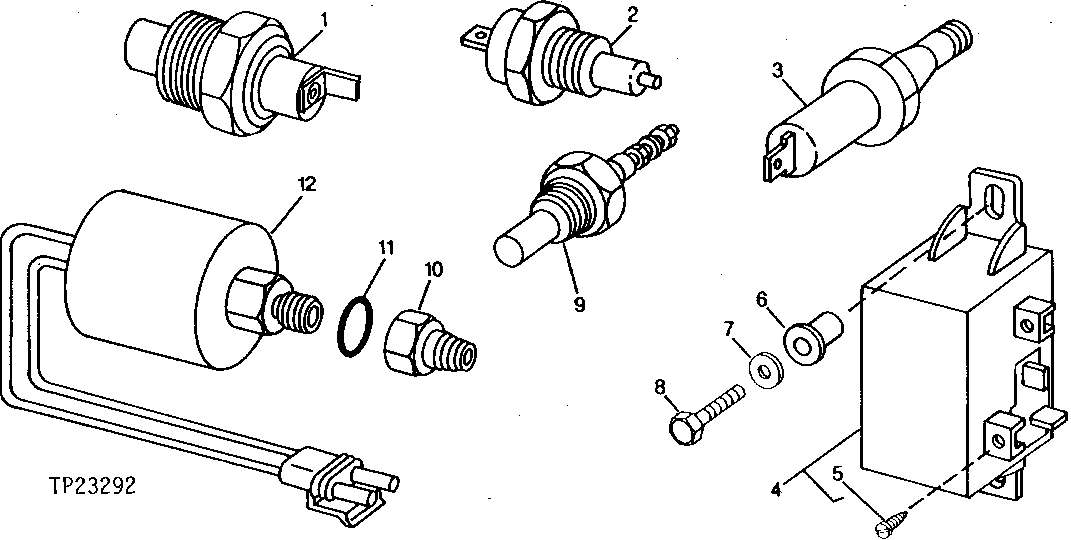

Запчасти John Deere 90D 5 - INSTRUMENTS, INDICATORS AND SENDING UNITS 1676 - ELECTRICAL SYSTEMS 16

1

AT105546

SWITCH

THERMOSTAT HOUSING, (SUB FOR AH76125)

1шт.

2

AT135260

SWITCH

(SUB FOR AT100084) RESERVOIR REAR, LOWER, RIGHT PORT (INCLUDES NUT AND WASHER)

1шт.

14H631

NUT

0.190", (USE WITH AT100084)

1шт.

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

14H605

NUT

0.164"

1шт.

3

AT85174

SWITCH

ENGINE LOWER REAR PORT

1шт.

4

AT85258

RELAY

(LEFT, REAR, VALVE SUPPORT GUSSET = START CIRCUIT) (AUTO-IDLE RELAY IS BELOW AUTO-IDLE TIMER MODULE)

2шт.

5

21M7199

SCREW

M5 X 10, START CIRCUIT RELAY TERMINALS

2шт.

6

T82793

NUT

START CIRCUIT RELAY

4шт.

7

24H1287

WASHER

9/32" X 5/8" X 0.065", START CIRCUIT RELAY CAP SCREW

8шт.

8

19H1914

CAP SCREW

1/4" X 1", START CIRCUIT RELAY

4шт.

M63707

LOCK NUT

(SUB FOR (4) P43893)

4шт.

9

AT120609

SENDER

ENGINE CYLINDER HEAD REAR PORT, (SUB FOR RE15720 AND AT115442)

1шт.

12H246

LOCK WASHER

0.190"

1шт.

14H631

NUT

0.190"

2шт.

10

T82907

ADAPTER FITTING

AIR RESTRICTION SWITCH

1шт.

11

R26286

O-RING

AIR RESTRICTION SWITCH

1шт.

12

RE12176

AIR RESTRICTION SENSOR

AIR CLEANER OUTLET TUBE

1шт.
