18 - ALTERNATOR WIRING HARNESS

Запчасти John Deere 90D 18 - ALTERNATOR WIRING HARNESS 1674 - ELECTRICAL SYSTEMS 16

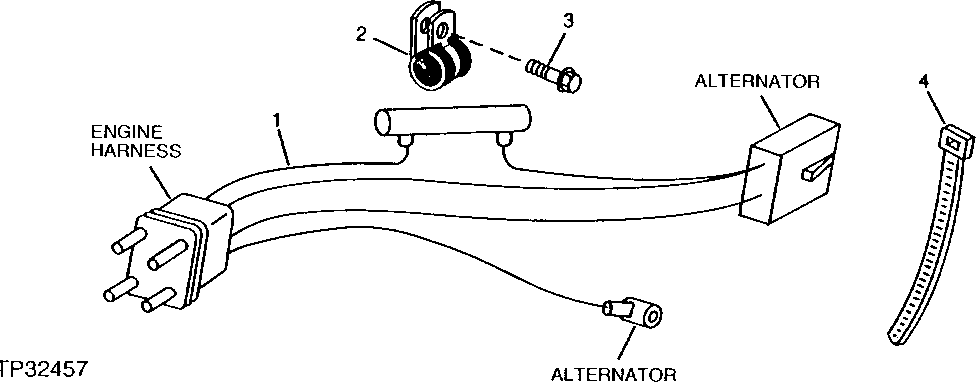

Схема запчастей John Deere 90D - 18 - ALTERNATOR WIRING HARNESS 1674 - ELECTRICAL SYSTEMS 16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT131151

WIRING HARNESS

(SUB FOR AT142344)

1шт.

2

T78974

CLAMP

INSTALLS RESISTOR TO ALTERNATOR GROUND HOLE

1шт.

3

19M7864

SCREW

M8 X 12, INSTALLS CLAMP TO ALTERNATOR GROUND HOLE

1шт.

4

R44302

TIE BAND

INSTALLS ALTERNATOR HARNESS TO ENGINE HARNESS

1шт.

Выбрано товаров: 4
