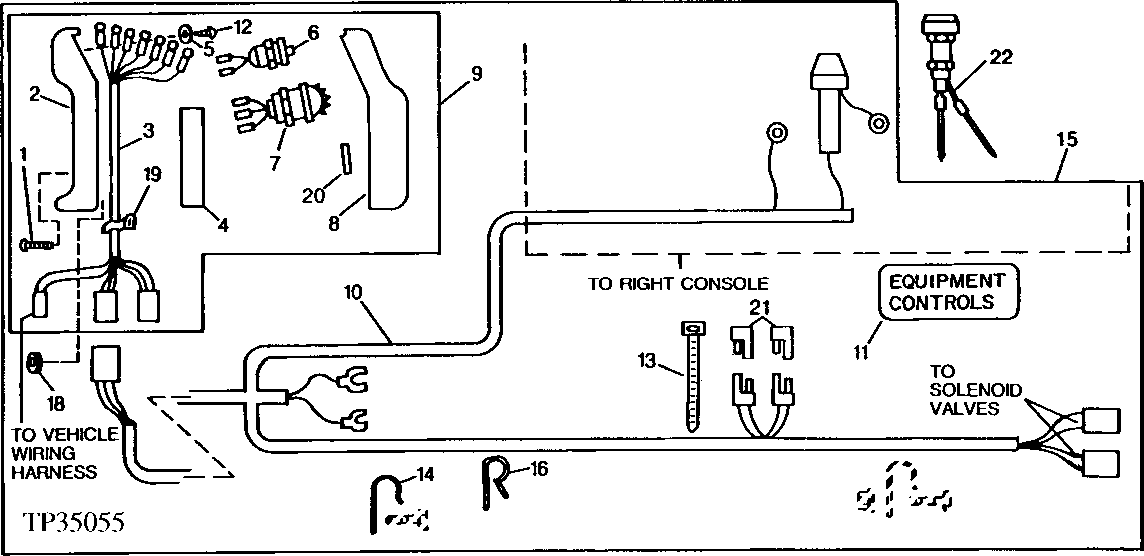

Запчасти John Deere 90D 10 - AUXILIARY VALVE WIRING HARNESS AND SINGLE PILOT CONTROL VALVE HANDLE 1674 - ELECTRICAL SYSTEMS 16

1

T80394

SCREW

6шт.

2

AT115448

HANDLE

1шт.

3

AT195787

WIRING HARNESS

(SUB FOR AT115451)

1шт.

4

T114698

SUPPORT

1шт.

5

12H321

WASHER

0.138"

7шт.

6

AT139383

TOGGLE/ROCKER SWITCH

(SUB FOR AT115450) (PUSH BUTTON) (MOMENTARY)

1шт.

7

AT139382

TOGGLE/ROCKER SWITCH

(SUB FOR AT115449)

2шт.

AT139382

TOGGLE/ROCKER SWITCH

2шт.

8

T114699

HANDLE

1шт.

9

AT195786

CONTROL LEVER

(SUB FOR AT115221)

1шт.

AT195786

CONTROL LEVER

(SUB FOR AT135551)

1шт.

10

AT115473

WIRING HARNESS

(USE WITH AT115269 OR AT115270)

1шт.

B32206

FUSE

EQUIPMENT CONTROL (3-AMP)

1шт.

11

T114781

LABEL

1шт.

12

21H1469

SCREW

0.138" X 3/8", DIODE

7шт.

13

R44302

TIE BAND

11шт.

14

T19935

CLAMP

3шт.

16

T22645

CLIP

2шт.

18

24M7240

WASHER

13 X 25 X 3 MM

2шт.

19

R44302

TIE BAND

2шт.

20

R71799

NEEDLE ROLLER

2шт.

21

AR94101

DIODE

2шт.

22

WIRING HARNESS

( AT141595 NO LONGER AVAILABLE)

1шт.
