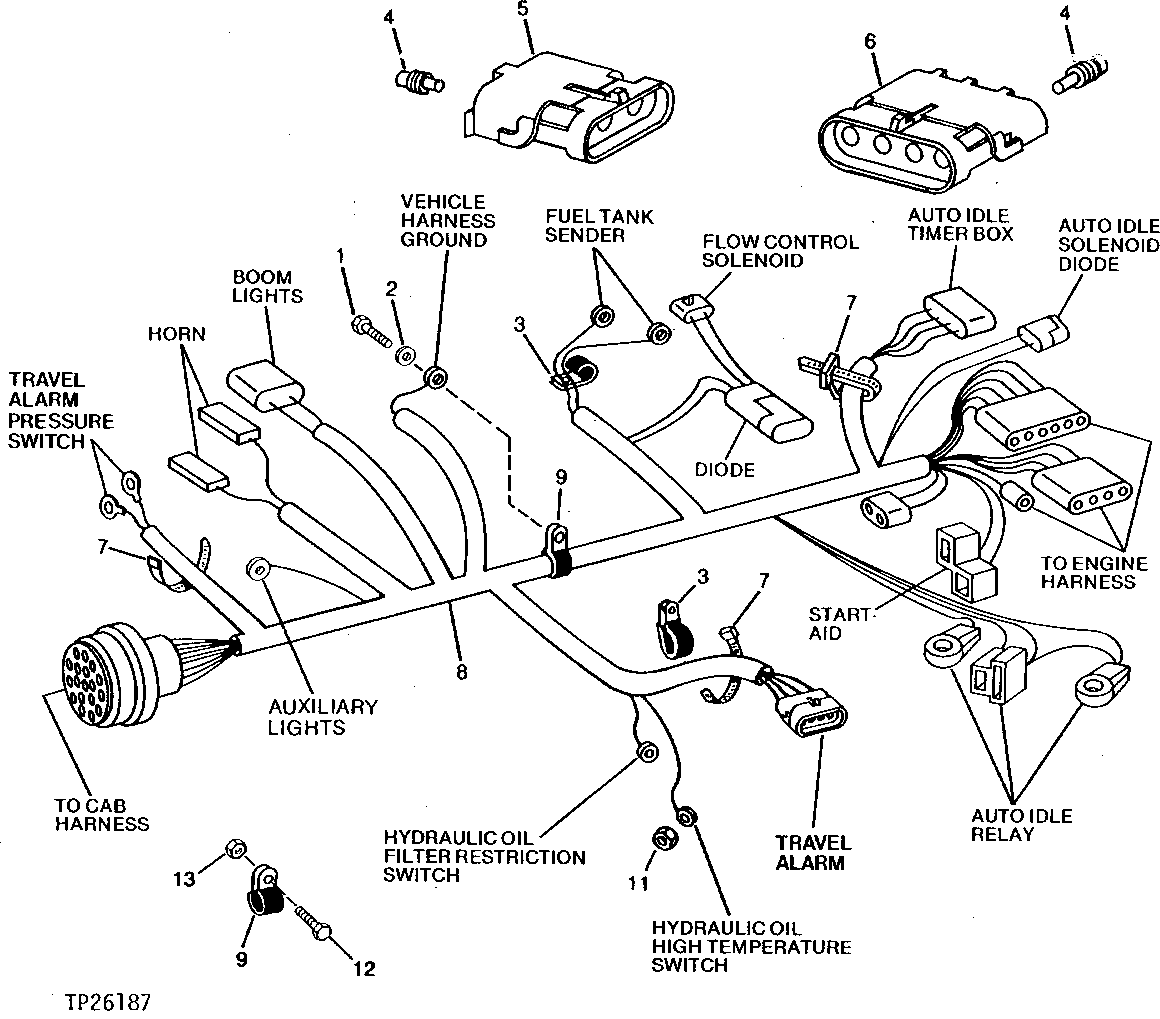

Запчасти John Deere 90D 6 - VEHICLE WIRING HARNESS 1674 - ELECTRICAL SYSTEMS 16

1

19M7783

SCREW

M10 X 16

5шт.

19M7784

SCREW

M10 X 20

2шт.

2

24M7040

WASHER

11 X 20 X 2 MM

1шт.

3

T19935

CLAMP

5шт.

4

R78064

ELEC. CONNECTOR CAVITY PLUG

(USE WITH RE12363 AND RE12365)

6шт.

R78064

ELEC. CONNECTOR CAVITY PLUG

USE WITH RE12365 ON TRAVEL ALARM CONNECTOR

4шт.

5

RE12363

ELECTRICAL CONNECTOR ASSY

TO PROTECT FLOW CONTROL SOLENOID CONNECTOR WHEN NOT IS USE (ALSO ORDER (2) R78064 PLUGS)

1шт.

6

RE12365

ELECTRICAL CONNECTOR ASSY

TO PROTECT AUTO-IDLE TIMER BOX CONNECTOR WHEN NOT IN USE (ALSO ORDER (4) R78064 PLUGS)

1шт.

RE12365

ELECTRICAL CONNECTOR ASSY

TO PROTECT TRAVEL ALARM CONNECTOR WHEN NOT IN USE

1шт.

7

R44302

TIE BAND

5шт.

8

AT115456

WIRING HARNESS

1шт.

9

T38377

CLAMP

5шт.

10

4200377

WIRING HARNESS

(SUB FOR AT114975) CAB (RIGHT CONSOLE TO REAR CAB WALL) (NOT ILLUSTRATED) (SEE PAGE 1674-7B)

1шт.

11

14H631

NUT

0.190"

3шт.

12

19M7785

SCREW

M10 X 25

3шт.

13

14M7296

FLANGE NUT

M10

4шт.

14

AH77714

CLIP

(NOT ILLUSTRATED) (HARNESS AND SHUTTLE VALVE TO COMPENSATOR HOSE TO BOSS ON DECK PLATE)

1шт.
