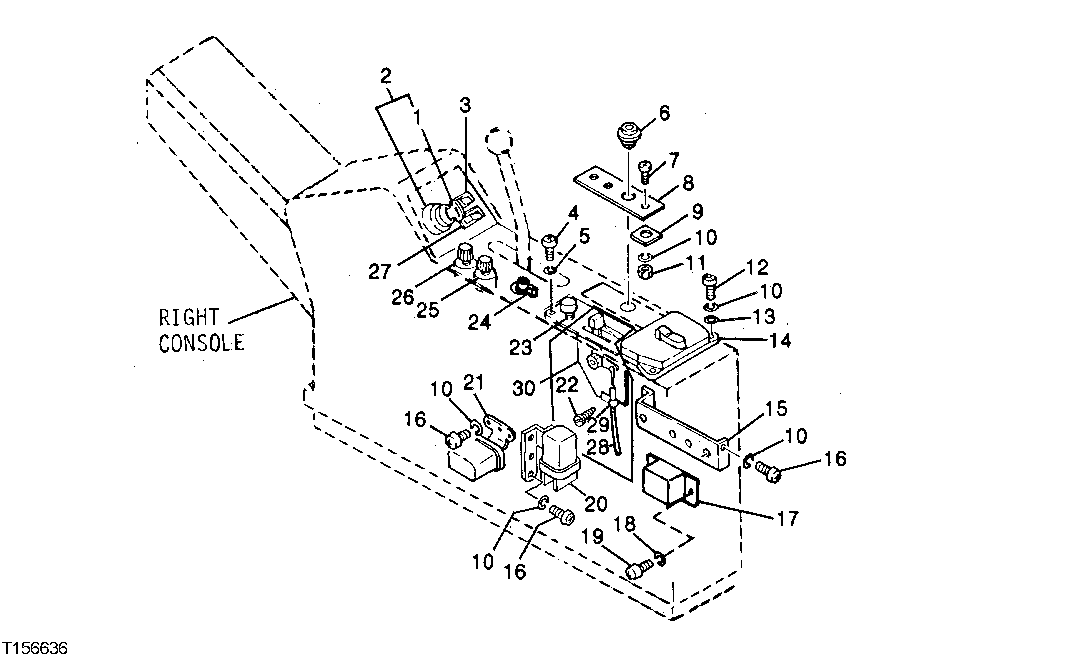

Запчасти John Deere 90D 1 - ELECTRICAL SWITCHES, FUSE BOX AND RELAYS 1674 - ELECTRICAL SYSTEMS 16

1

AR51481

KEY

(SUB FOR AT145929, THIS APPLICATION)

1шт.

2

AT195301

SWITCH

WITH TWO KEYS, (SUB FOR AT145931)

1шт.

3

4187089

SWITCH

(SUB FOR TH108554) AUTO IDLE CONTROL

1шт.

4

21M7396

SCREW

4шт.

5

12H315

LOCK WASHER

4.166 MM, (SUB FOR 12M7063)

4шт.

6

4155755

SWITCH

(SUB FOR TH101582) START AID

1шт.

7

21M7455

SCREW

M6 X 20, (SUB FOR 21M7085)

2шт.

8

4200522

PLATE

(SUB FOR TH108564)

1шт.

9

4200521

PLATE

(SUB FOR TH108565)

1шт.

10

12M7006

LOCK WASHER

6 MM

3шт.

11

14M7272

NUT

M6

2шт.

12

21M7277

SCREW

M6 X 25

2шт.

13

24M7054

WASHER

6.400 X 12 X 1.600 MM

2шт.

14

4205437

FUSE BOX

(SUB FOR TH108560)

1шт.

AT58169

FUSE

1-AMP, 0.250" X 1.000"

1шт.

AT28077

FUSE

10-AMP, 0.250" X 1.250"

9шт.

AT39227

FUSE

15-AMP, 0.250" X 1.250"

3шт.

AR47548

FUSE

25-AMP, 0.250" X 1.250"

1шт.

15

4200514

BRACKET

(SUB FOR TH108574)

1шт.

16

21M7288

SCREW

M6 X 10

5шт.

17

AT85258

RELAY

CAB

1шт.

18

12M7006

LOCK WASHER

6 MM

2шт.

19

21M7288

SCREW

M6 X 10

2шт.

20

4357038

RELAY

(SUB FOR AT82709) HOUR METER

1шт.

21

4505392

RELAY

(SUB FOR TH100585) HORN

1шт.

22

37H43

SCREW

1шт.

23

AR60937

ELECTRICAL LIGHTER

(ALSO ORDER AT78633, AT78634 AND AU42809)

1шт.

24

4173490

SWITCH

(SUB FOR AT82707) BLOWER

1шт.

25

4184398

SWITCH

(SUB FOR TH108559) WIPER

1шт.

26

4184396

SWITCH

(SUB FOR TH108556) LIGHT

1шт.

27

4187088

SWITCH

(SUB FOR TH108553) FAST AND SLOW MODE

1шт.

28

AT125441

PUSH PULL CABLE

1шт.

29

T115109

CLIP

1шт.

30

4240651

CONTROL

(SUB FOR AT114989) (SUB FOR AT125530)

1шт.
