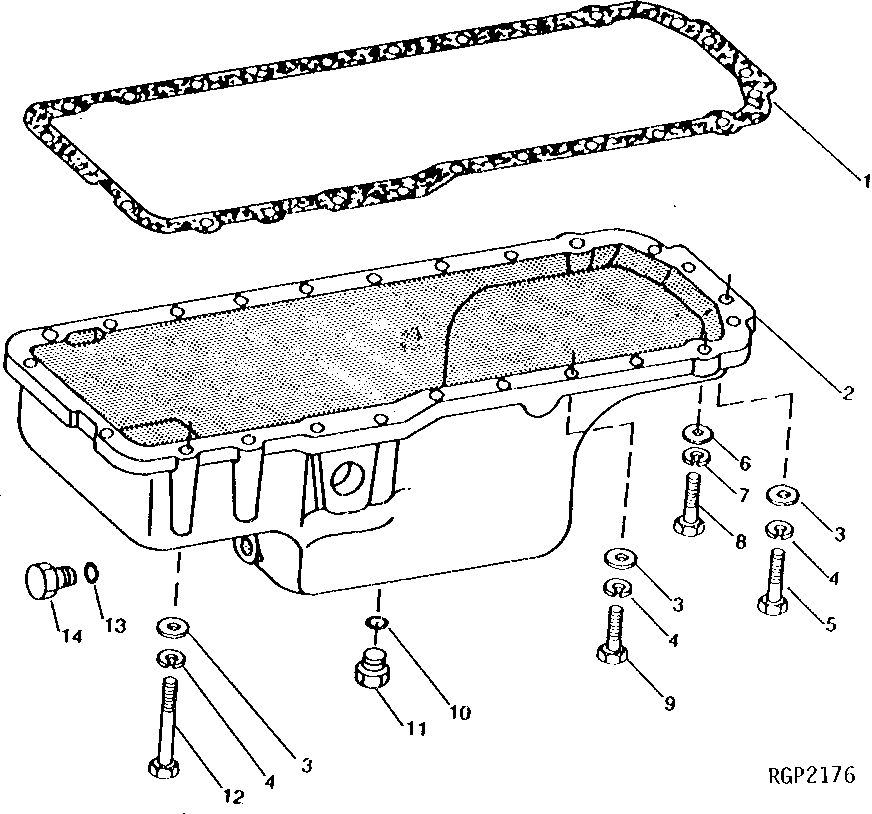

Запчасти John Deere 90CR 2 - OIL PAN 407 - ENGINE 4

1

R49377

GASKET

(SUB RE504822)

1шт.

RE504822

GASKET

(SUB FOR R49376 AND R49377)

1шт.

2

RE18726

OIL PAN

1шт.

3

24H1305

WASHER

13/32" X 13/16" X 0.065"

22шт.

4

12H304

LOCK WASHER

3/8"

22шт.

5

19H3485

CAP SCREW

3/8" X 2"

2шт.

6

24H1338

WASHER

33/64" X 7/8" X 0.048"

2шт.

7

12H301

LOCK WASHER

1/2"

2шт.

8

19H2473

CAP SCREW

1/2" X 1-3/4"

2шт.

9

19H3267

CAP SCREW

3/8" X 1-5/8"

18шт.

10

A4827R

WASHER

25.400 X 31.700 X 1.500 MM (1" X 1.248" X 0.059")

1шт.

11

R26727

DRAIN PLUG

1шт.

12

19H3504

CAP SCREW

3/8" X 5-3/8"

2шт.

13

U12547

O-RING

(SUB FOR F3171R)

1шт.

14

R27175

DRAIN PLUG

1шт.
