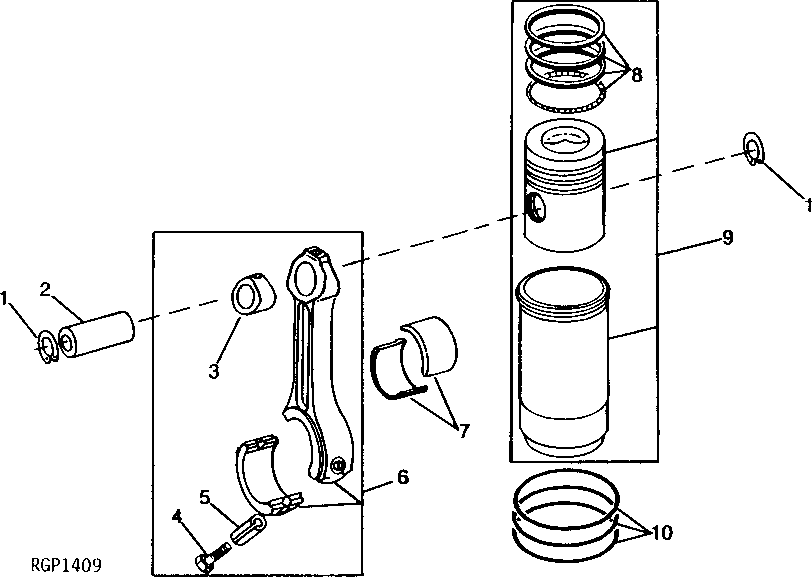

Запчасти John Deere 90CR 1 - PISTON, RINGS, LINERS AND CONNECTING RODS 403 - ENGINE 4

1

E1343FN

SNAP RING

12шт.

2

R57771

PISTON PIN

6шт.

3

R74008

BUSHING

6шт.

4

R66452

CAP SCREW

12шт.

5

R53292

SLEEVE

12шт.

6

SE500498

CONNECTING ROD

(MARKED R71074) (SUB FOR AR93341)

6шт.

7

AR73277

BEARING

STANDARD (PKG. OF (2) R57583)

ARшт.

AR73278

BEARING

0.05MM (.002") UNDERSIZE (PKG. OF (2) R60485)

ARшт.

AR73279

BEARING

0.25MM (.010") UNDERSIZE (PKG. 0F (2) R60486)

ARшт.

AR73280

BEARING

0.51MM (.020") UNDERSIZE (PKG. 0F (2) R60487)

ARшт.

AR73281

BEARING

0.76MM (.030") UNDERSIZE (PKG. OF (2) R60488)

ARшт.

8

AR73627

PISTON RING

6шт.

9

AR100646

PISTON-LINER KIT

(MARKED AR100616) (SUB RE60282)

6шт.

RE60282

PISTON-LINER KIT

(MARKED AR98838)

6шт.

10

AR98850

O-RING KIT

6шт.
