12 - CONTROL VALVE TO ROTARY MANIFOLD HOSES AND FITTINGS

Запчасти John Deere 90CR 12 - CONTROL VALVE TO ROTARY MANIFOLD HOSES AND FITTINGS 260 - AXLES AND SUSPENSION SYSTEMS 2

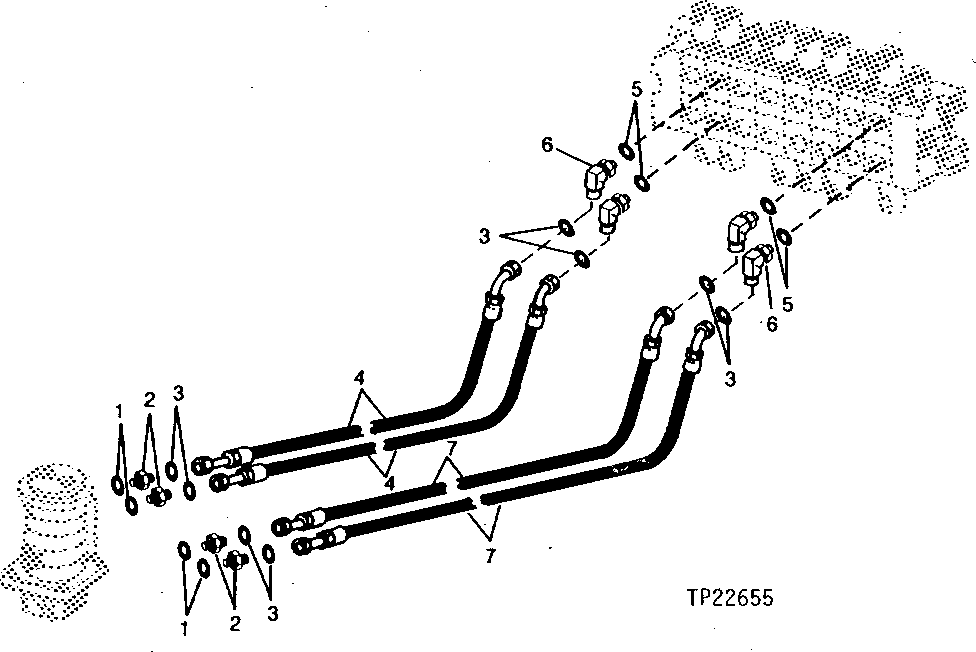

Схема запчастей John Deere 90CR - 12 - CONTROL VALVE TO ROTARY MANIFOLD HOSES AND FITTINGS 260 - AXLES AND SUSPENSION SYSTEMS 2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

U13639

O-RING

4шт.

2

38H1180

ADAPTER FITTING

4шт.

3

T76938

O-RING

8шт.

4

AT101735

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 250 MM (49-1/4") X 1-7/16"

2шт.

5

R29936

O-RING

4шт.

6

38H1049

ELBOW FITTING

4шт.

7

AT78923

HYDRAULIC HOSE - FABRICATE

2шт.
