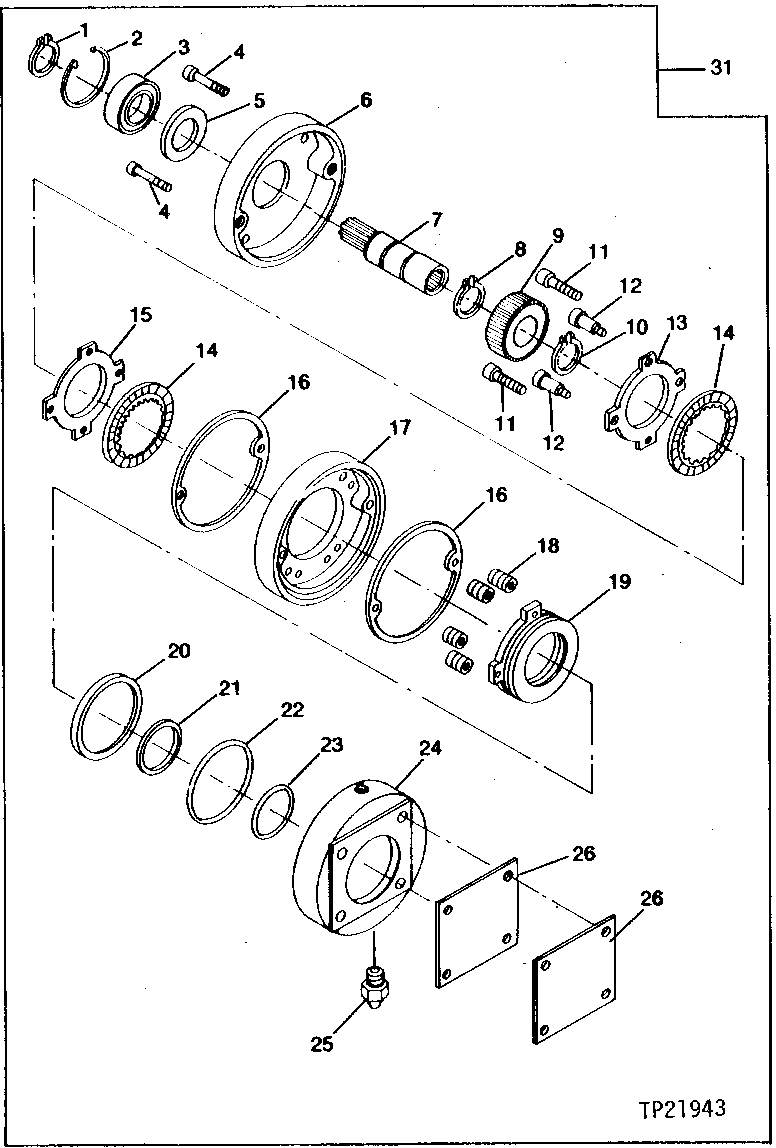

Запчасти John Deere 90CR 8 - PROPEL BRAKE ASSEMBLY 250 - AXLES AND SUSPENSION SYSTEMS 2

1

42-640-031

SNAP RING

(F) (K)

1шт.

2

42-640-010

SNAP RING

(F) (K)

1шт.

3

BEARING

(F)

1шт.

4

43-215-005

BOLT

(F) ASSEMBLY, SOCKET HEAD REFERENCE DP27095

2шт.

5

42-190-045

SEAL

(F) OIL

1шт.

6

40-030-047

PLATE

(F) COVER

1шт.

7

40-180-046

SHAFT

(F) REAR PORT

1шт.

8

42-640-030

SNAP RING

(F) (K)

1шт.

9

40-180-109

SHAFT

(F) OUTER SPLINE

1шт.

10

42-640-024

SNAP RING

(F)

1шт.

11

43-265-019

BOLT

(F) ASSEMBLY, FLAT FACE - REFERENCE DP27096

2шт.

12

43-200-013

PIN

(F) TENSION - REFERENCE DP27104 (K)

4шт.

13

DISK

(F) (SUB 12-501-014) PRIMARY

1шт.

14

ROTOR

(F) (SUB 12-501-014)

3шт.

15

STATOR

(F) (SUB 12-501-014)

5шт.

16

42-115-010

SEAL

(F) CASE (K)

2шт.

17

40-230-033

PLATE

(F) SPRING

1шт.

18

SPRING

(F) (SUB 12-501-088)

12шт.

19

40-010-042

PISTON

(F) REFERENCE DP27094 (K)

1шт.

20

BACK-UP RING

(F) (SUB 12-501-002) (K)

1шт.

21

BACK-UP RING

(F) (SUB 12-501-002) (K)

1шт.

22

O-RING

(F) (SUB 12-501-002) (K)

1шт.

23

O-RING

(F) (SUB 12-501-002) (K)

1шт.

24

40-230-040

PLATE

(F) PRESSURE

1шт.

25

32-200-003

BLEED VALVE

(F)

1шт.

26

COVER

(F) PLATE

2шт.

27

12-501-002

O-RING KIT

(F) (NOT ILLUSTRATED) - REFERENCE DP27097

1шт.

28

12-501-014

KIT

(F) PLATE (NOT ILLUSTRATED) - REFERENCE DP27098

1шт.

29

12-501-006

BEARING KIT

(F) (NOT ILLUSTRATED) - REFERENCE DP27099

1шт.

30

12-501-088

KIT

(F) SPRING (NOT ILLUSTRATED) - REFERENCE DP27100

1шт.

31

AT115217

BRAKE

(F) ASSEMBLY, PROPEL

2шт.
