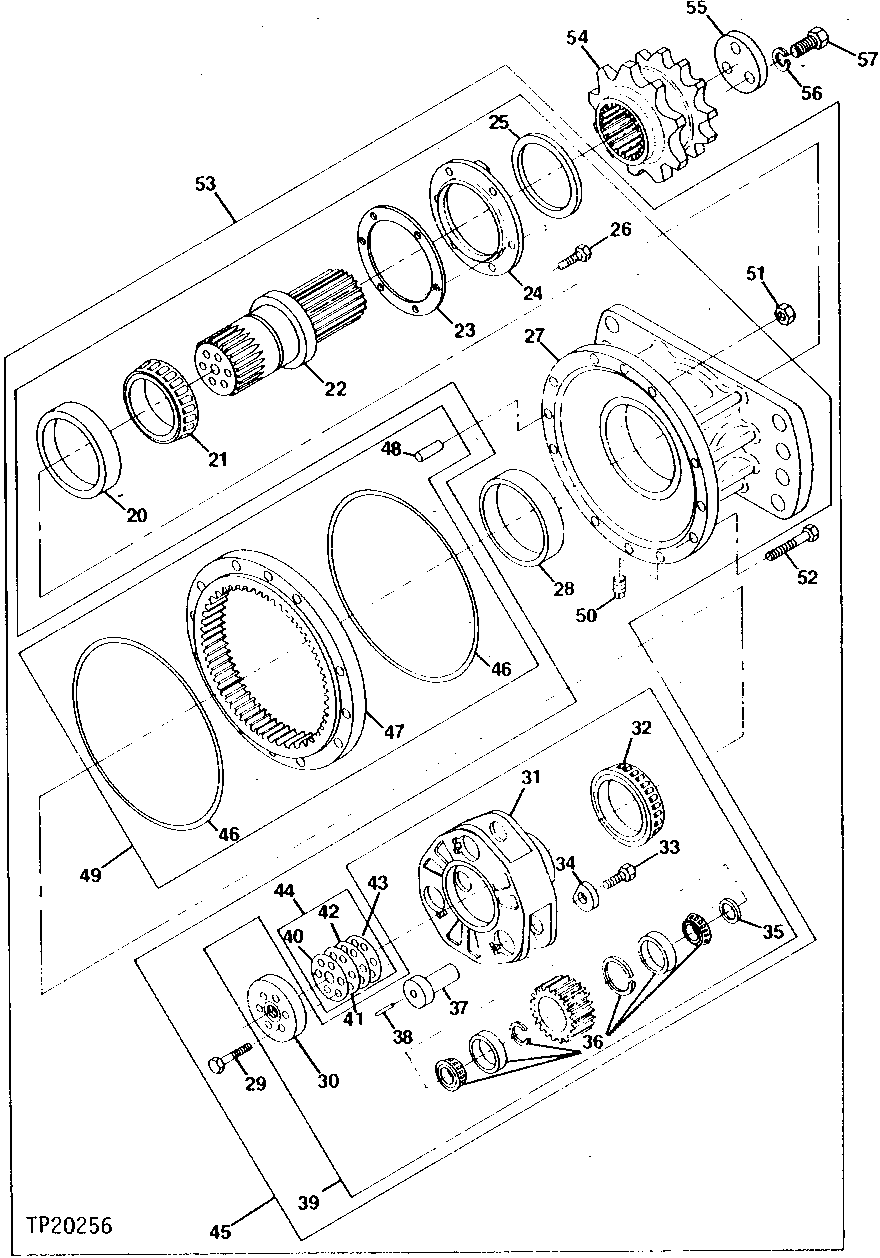

Запчасти John Deere 90CR 4 - SINGEL SPEED GEAR BOX 250 - AXLES AND SUSPENSION SYSTEMS 2

19

F2000007

PIPE PLUG

(A) 5/8" PIPE

1шт.

20

F58586

BEARING CUP

(A)

1шт.

21

F58102

BEARING CONE

(A)

1шт.

22

4063820

UNIVERSAL DRIVESHAFT

(A)

1шт.

23

4063800

GASKET

(A)

1шт.

24

4063796

RETAINER

(A)

1шт.

25

F65273

SEAL

(A)

1шт.

26

19H118

CAP SCREW

(A) (SUB F1002016) 5/16" -18 X 1"

6шт.

27

4063797

HOUSING

(A)

1шт.

28

F58521

BEARING CUP

(A)

1шт.

29

F1003528H8

CAP SCREW

(A) 3/8" -24 X 1-5/8"

6шт.

30

4063696

PLATE

(A)

1шт.

31

4063695

CAGE

(A)

1шт.

32

F58081

BEARING CONE

(A)

1шт.

33

F1005540H8

CAP SCREW

(A) 1/2" -20 X 2-1/2"

3шт.

34

4063705

LOCK WASHER

(A)

3шт.

35

4063198

SPACER

(A)

3шт.

36

F58601

CROSS AND BEARING ASSEMBLY

(A)

3шт.

37

4063755

UNIVERSAL DRIVESHAFT

(A)

3шт.

38

F290801202

GROOVE PIN

(A)

3шт.

39

4063690

GEAR

(A)

1шт.

40

4063795A

SOLID SHIM

(A) .002" THICK

ARшт.

41

4063795B

SOLID SHIM

(A) .003" THICK

ARшт.

42

4063795C

SOLID SHIM

(A) .005" THICK

ARшт.

43

4063795D

SOLID SHIM

(A) .010" THICK

ARшт.

44

4063795SA

SOLID SHIM

(A) TWO EACH OF NO. 40 THRU NO. 43

ARшт.

45

4063819

HOUSING

(A)

1шт.

46

F73125277

SEAL

(A)

2шт.

47

4063327

RING GEAR

(A)

1шт.

48

F291402802

GROOVE PIN

(A)

4шт.

49

4063328

RING GEAR

(A)

1шт.

50

F190018

PLUG

(A) 1/2" PIPE

1шт.

51

4060576

LOCK NUT

(A) 1/2" -20

4шт.

52

F1005044H8

CAP SCREW

(A) 1/2" -13 X 2-5/8"

4шт.

53

11098B

GEAR CASE

(A) COMPLETE ASSEMBLY

2шт.

54

5Y1025C-10

DRIVE SPROCKET

(A)

1шт.

55

5Y1033A-1

PLATE

(A)

1шт.

56

COML

LOCK WASHER

5/8" GRADE 8 MINIMUM

3шт.

57

COML

CAP SCREW

5/8" -18 X 1-7/16" GRADE 8 MINIMUM

3шт.
