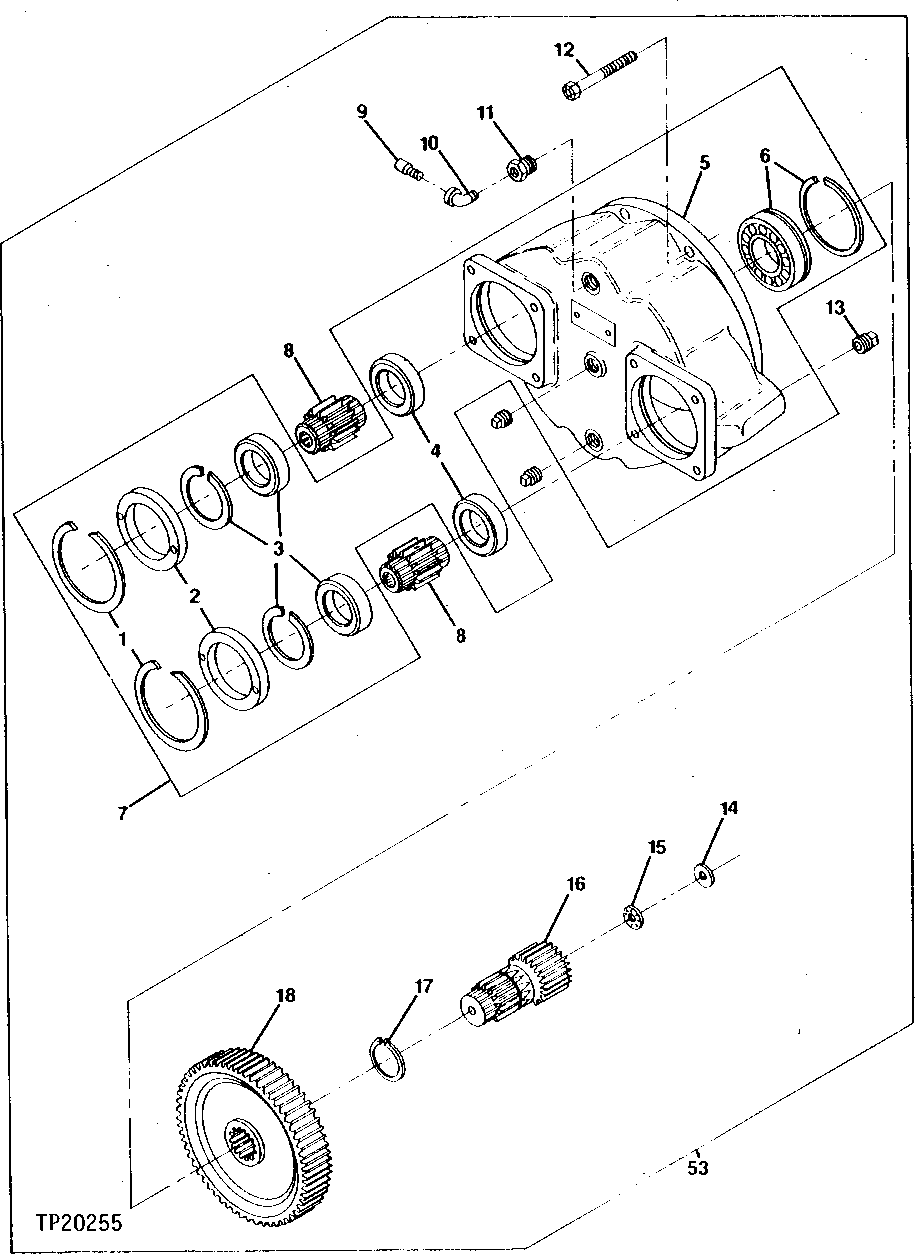

Запчасти John Deere 90CR 2 - SINGLE SPEED GEAR BOX 250 - AXLES AND SUSPENSION SYSTEMS 2

1

F81500500

SNAP RING

(A)

2шт.

2

4062123

SPACER

(A)

2шт.

3

FM4O210MFFG

ELEVATOR

(A) (WITH SNAP RING)

2шт.

4

FMRO210MFF

ELEVATOR

(A)

2шт.

5

4063102

HOUSING

(A)

1шт.

6

FMRO210SG

BEARING

(A) (WITH SNAP RING)

1шт.

7

4063161

HOUSING

(A)

1шт.

8

4063129

UNIVERSAL DRIVESHAFT

(A)

2шт.

9

F68203

BREATHER

(A)

1шт.

10

(A) NOT PART OF ASSEMBLY NO. 53 7/16" TUBE X 1/8" PIPE

1шт.

11

15H518

PIPE BUSHING

(A) (SUB F321007)

1шт.

12

F1045560H8

CAP SCREW

(A) 1/2" -20 X 3-3/4"

4шт.

13

F1900112

PIPE PLUG

(A) 5/8" PIPE

3шт.

14

F5520916

THRUST WASHER

(A)

1шт.

15

F5500916

NEEDLE BEARING

(A)

1шт.

16

4063697

SUN GEAR

(A)

1шт.

17

T44824

SNAP RING

(A) (SUB F39010237)

1шт.

18

4063109

GEAR

(A)

1шт.
