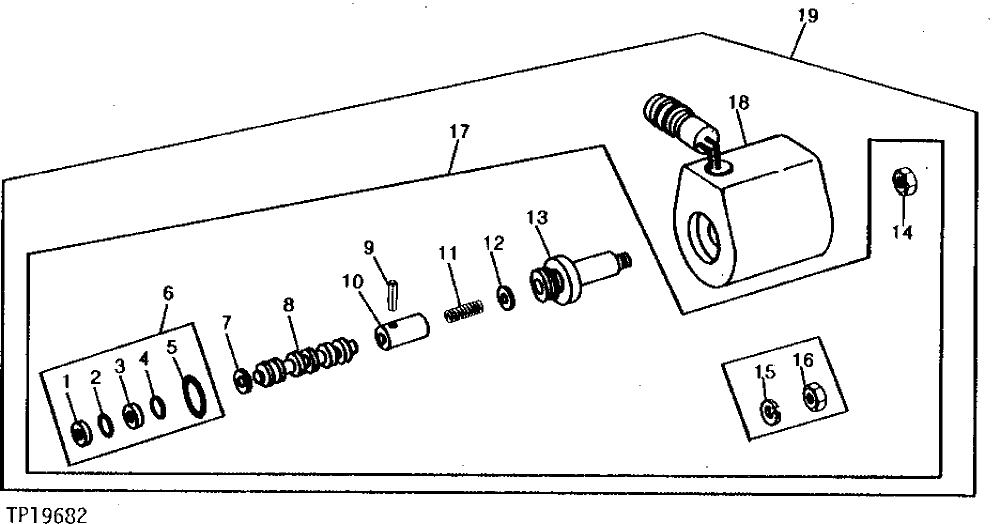

Запчасти John Deere 90CR 1 - SWING LOCK SOLENOID VALVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

R42926

BACK-UP RING

1шт.

2

T40308

O-RING

(SUB FOR H81608, THIS APPLICATION)

1шт.

3

R45187

BACK-UP RING

1шт.

4

R45638

O-RING

1шт.

5

U12547

O-RING

1шт.

6

R42926

BACK-UP RING

(SUB FOR AT66730)

1шт.

7

SNAP RING

(SUB RE21872 FOR R46701, THIS APPLICATION)

1шт.

8

SPOOL VALVE

(SUB RE21872 FOR AR81176, THIS APPLICATION)

1шт.

9

SPRING PIN

(SUB RE21872 34H227, THIS APPLICATION)

1шт.

10

PLUNGER

(SUB RE21872 FOR R58884, THIS APPLICATION)

1шт.

11

SPRING

(SUB RE21872 FOR R64698, THIS APPLICATION)

1шт.

12

SHIM

(SUB RE21872 FOR R64697, THIS APPLICATION)

1шт.

13

GUIDE

(SUB RE21872 FOR AR48903, THIS APPLICATION)

1шт.

14

M63707

LOCK NUT

1шт.

15

12H297

LOCK WASHER

1/4", (SUB M63707, THIS APPLICATION)

1шт.

16

14H786

NUT

1/4", (SUB M63707, THIS APPLICATION)

1шт.

17

VALVE

(TUBE ASSEMBLY) (RE21942 USE IF AVAILABLE)

1шт.

18

RE24904

ELECTRICAL COIL

(SUB FOR RE22400)

1шт.

19

AT116486

ELEC.PROPORTIONAL VALVE

(SUB FOR AT115437)

1шт.

AT115457

SOLENOID VALVE

1шт.

T107202

HOUSING

(SUB AT116486) ( T107202 NO LONGER AVAILABLE)

1шт.
