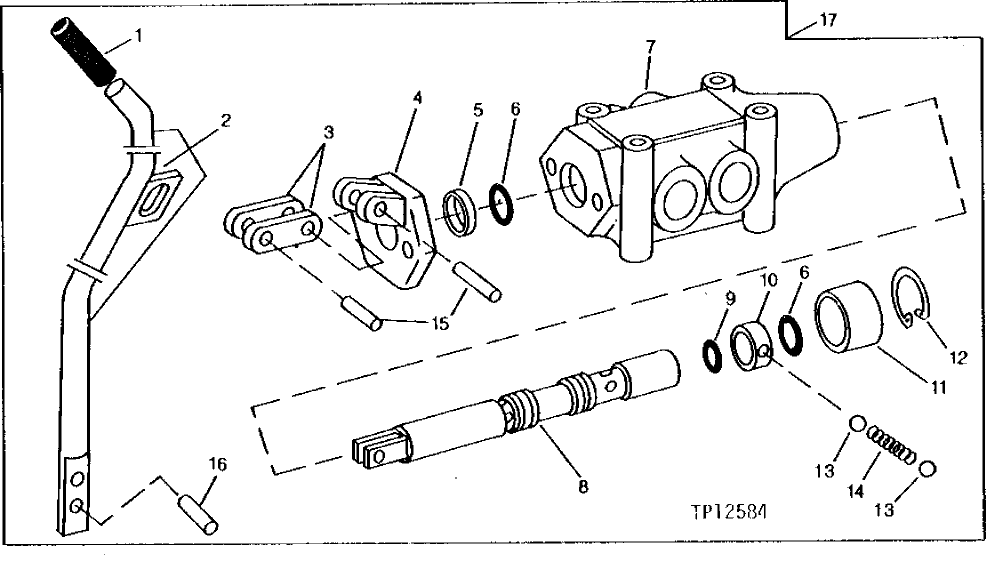

Запчасти John Deere 90CR 46 - SHUT-OFF VALVE 3360 - BACKHOE AND EXCAVATOR 33

1

4162336

GRIP

(SUB FOR TH100561)

1шт.

2

8032325

LEVER

(SUB FOR AT82750)

1шт.

3

4042052

PLATE

(SUB FOR T81300)

2шт.

4

COVER

(SUB AT82749)

1шт.

5

4042054

SEAL

(SUB FOR T81301)

1шт.

6

R77401

O-RING

2шт.

7

HOUSING

(SUB AT82749)

1шт.

8

SPOOL

(SUB AT82749)

1шт.

9

R50919

O-RING

1шт.

10

4042055

STOP

(SUB FOR T81302)

1шт.

11

4042056

DETENT

(SUB FOR T81303)

1шт.

12

40M7119

SNAP RING

1шт.

13

L38718

BALL

2шт.

14

4042058

SPRING

(SUB FOR T81304)

1шт.

15

34H310

SPRING PIN

1/4" X 3/4"

2шт.

16

34M7041

SPRING PIN

6 X 36 MM

1шт.

17

4039016

FLOW CONTROL HYD. VALVE

(SUB FOR AT82749)

1шт.
