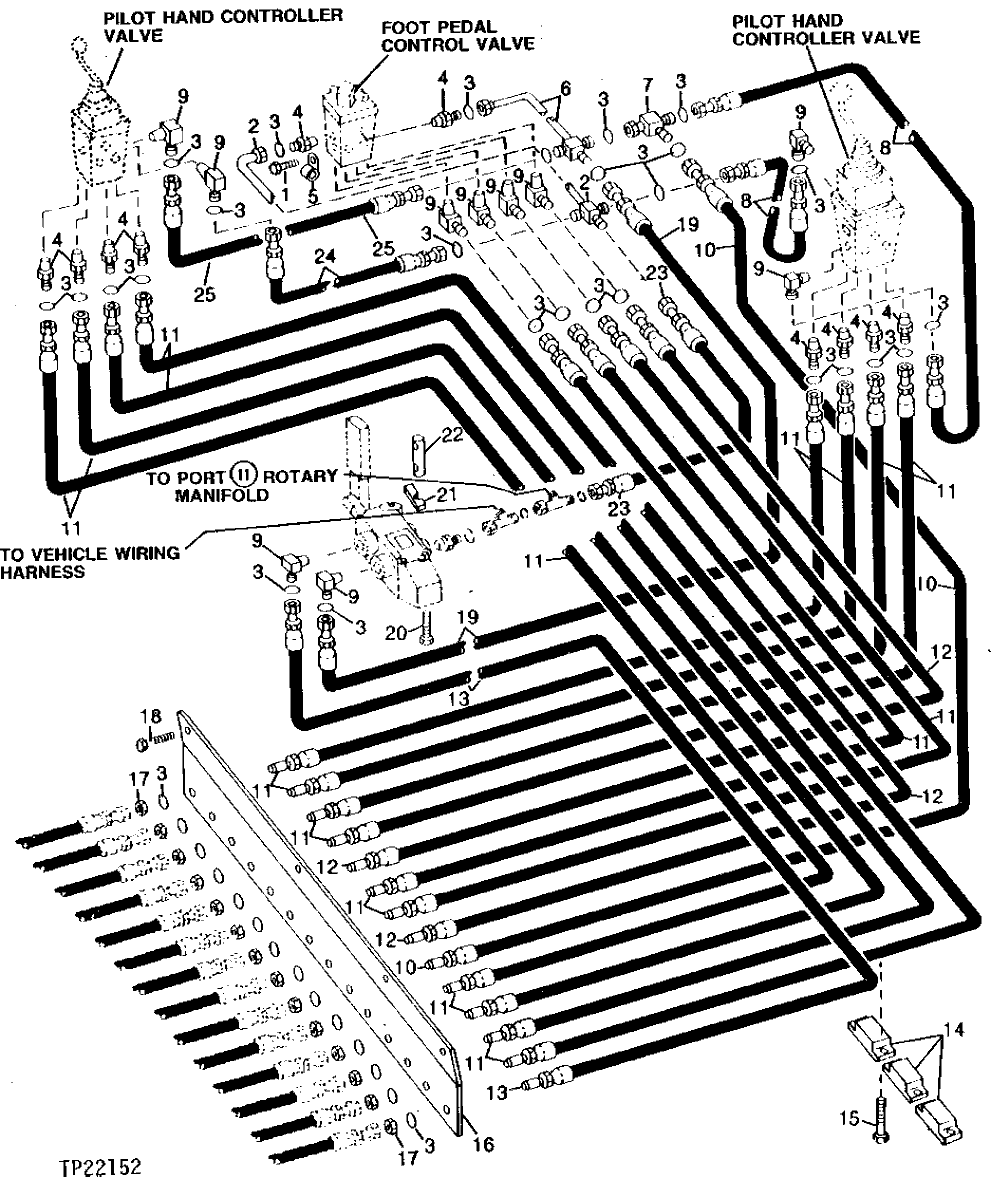

Запчасти John Deere 90CR 44 - PILOT CONTROL HAND CONTROLLER TO FOOT PEDAL CONTROLLER 3360 - BACKHOE AND EXCAVATOR 33

1

19M7861

SCREW

M6 X 10

2шт.

2

AT82742

OIL LINE

1шт.

3

T77613

O-RING

42шт.

4

T81296

ADAPTER FITTING

10шт.

5

T38545

CLAMP

2шт.

6

AT82747

OIL LINE

1шт.

7

38H1030

TEE FITTING

1шт.

8

AT82744

HYDRAULIC HOSE - FABRICATE

11/16" X 750 MM (29-1/2") X 11/16"

2шт.

9

T81297

ELBOW FITTING

10шт.

10

AT82739

HYDRAULIC HOSE

11/16" X 1 080 MM (42-1/2") X 11/16"

1шт.

11

AT82737

HYDRAULIC HOSE

11/16" X 1 300 MM (51-1/4") X 11/16"

10шт.

12

AT82738

HYDRAULIC HOSE

11/16" X 1 400 MM (55") X 11/16"

2шт.

13

AT82748

HYDRAULIC HOSE

11/16" X 600 MM (23-1/2") X 11/16"

1шт.

14

4069831

CLAMP

(SUB FOR AT82740)

3шт.

15

19M8162

SCREW

M10 X 40

6шт.

16

4172575

PLATE

(SUB FOR T81295)

1шт.

17

T81029

NUT

14шт.

18

19M7836

SCREW

M10 X 110

4шт.

19

AT82745

HYDRAULIC HOSE - FABRICATE

11/16" X 1 100 MM (43-1/4") X 11/16"

1шт.

20

19M8070

SCREW

M6 X 90

4шт.

21

4155002

SHIM

(SUB FOR T81298)

ARшт.

22

4155001

BAR

(SUB FOR T81299)

2шт.

23

AT82741

HYDRAULIC HOSE - FABRICATE

11/16" X 700 MM (27-1/2") X 11/16"

1шт.

24

AT82743

HYDRAULIC HOSE - FABRICATE

11/16" X 600 MM (23-1/2") X 11/16"

1шт.

25

AT82746

HYDRAULIC HOSE - FABRICATE

11/16" X 650 MM (25-1/2") X 11/16"

1шт.
