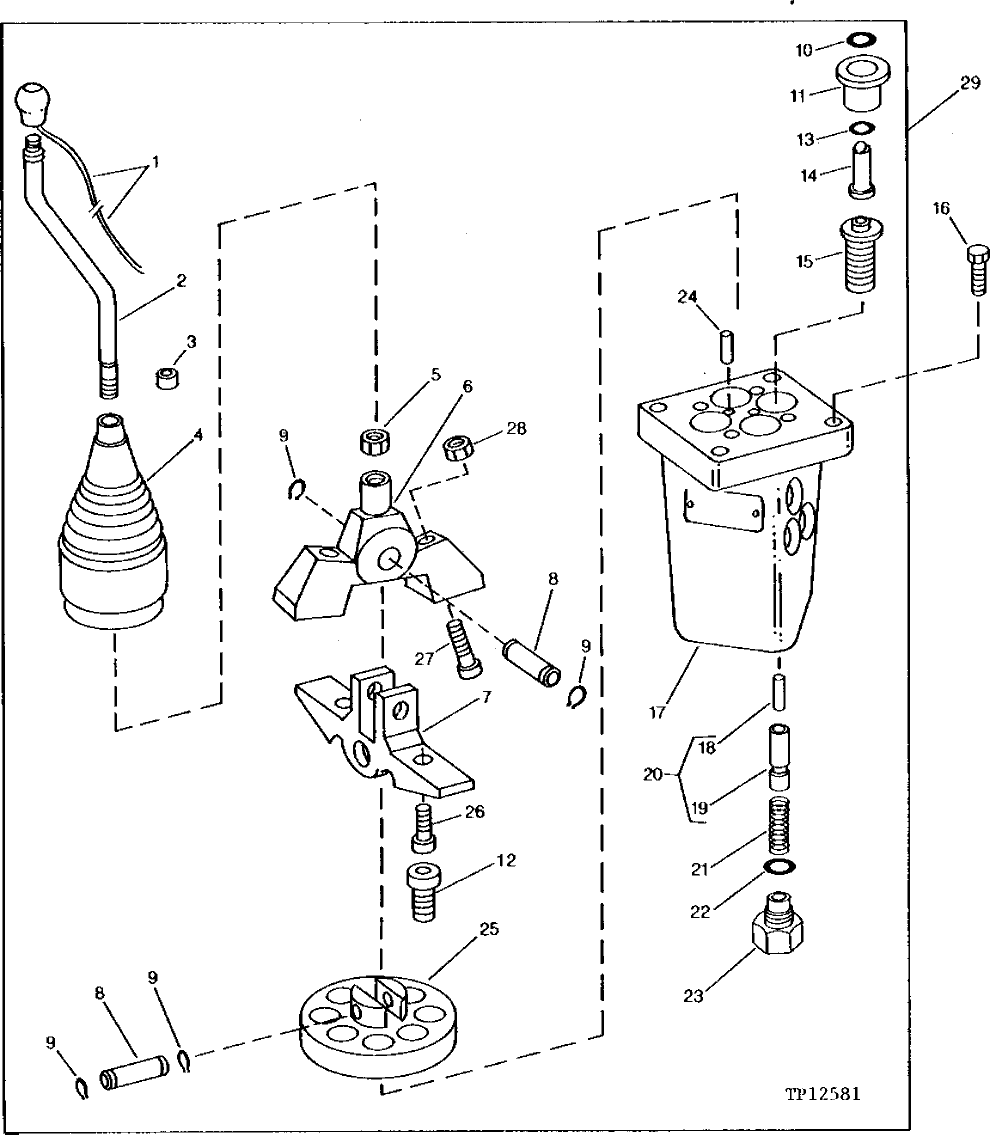

Запчасти John Deere 90CR 42 - PILOT CONTROL HAND CONTROLLER 3360 - BACKHOE AND EXCAVATOR 33

1

4323198

GRIP

(USE WITH AT82759) (SUB FOR TH108074) (SUB FOR AT170458) WITH SWITCH FOR SWING LOCK

1шт.

4269020

KNOB

(USE WITH AT82755) (SUB FOR TH108073) WITH SWITCH FOR HORN

1шт.

2

8031680

LEVER

(SUB FOR T81323)

1шт.

3

4170910

GROMMET

(SUB FOR T81329)

1шт.

4

3106237

BOOT

(SUB FOR T81330 OR 3024032)

1шт.

5

14M7276

NUT

M16

1шт.

6

3026939

CAM

(SUB FOR TH103617)

1шт.

7

4122372

CAM

(SUB FOR TH103618)

1шт.

8

4127106

PIN FASTENER

(SUB FOR T81327)

2шт.

9

40M1818

SNAP RING

4шт.

10

4506377

SEAL

(SUB FOR T81310)

4шт.

11

4121693

SOCKET

(SUB FOR T81309)

4шт.

12

19M4750

SCREW

M10 X 25

4шт.

13

R27149

O-RING

4шт.

14

9041129

PLUNGER

(SUB FOR AT82752) (SWING AND BUCKET FUNCTION)

2шт.

9042903

PLUNGER

(SUB FOR AT82756) (BOOM AND ARM FUNCTION)

2шт.

15

9053278

HOLDER

(SUB FOR AT82757) (BOOM AND ARM FUNCTION)

2шт.

9053279

HOLDER

(SUB FOR AT82758) (SWING AND BUCKET FUNCTION)

2шт.

16

19M8439

SCREW

M8 X 25, (SUB FOR 19M7657)

4шт.

17

HOUSING

(SUB AT82759 OR AT82755)

1шт.

18

SPOOL

(SUB AT82760)

4шт.

19

SLEEVE

(SUB AT82760)

1шт.

20

8032702

VALVE SPOOL

(SUB FOR AT82760)

4шт.

21

4139695

SPRING

(SUB FOR T81311) (BOOM AND ARM FUNCTION)

2шт.

4139696

SPRING

(SUB FOR T81324) (SWING AND BUCKET FUNCTION)

2шт.

22

CH11570

O-RING

(SUB FOR TH100049)

4шт.

23

T81320

FITTING PLUG

4шт.

24

J400408

PIN

(SUB FOR T81318)

2шт.

25

3031737

HOLDER

(SUB FOR TH108072)

1шт.

26

4122371

ADJUSTER

(SUB FOR T81325)

2шт.

27

4122370

ADJUSTER

(SUB FOR T81326)

2шт.

28

14M7254

NUT

M8

4шт.

29

9053267

VALVE

(SUB FOR AT82759) L.H

1шт.

9062795

VALVE

(SUB FOR AT82755) R.H

1шт.
