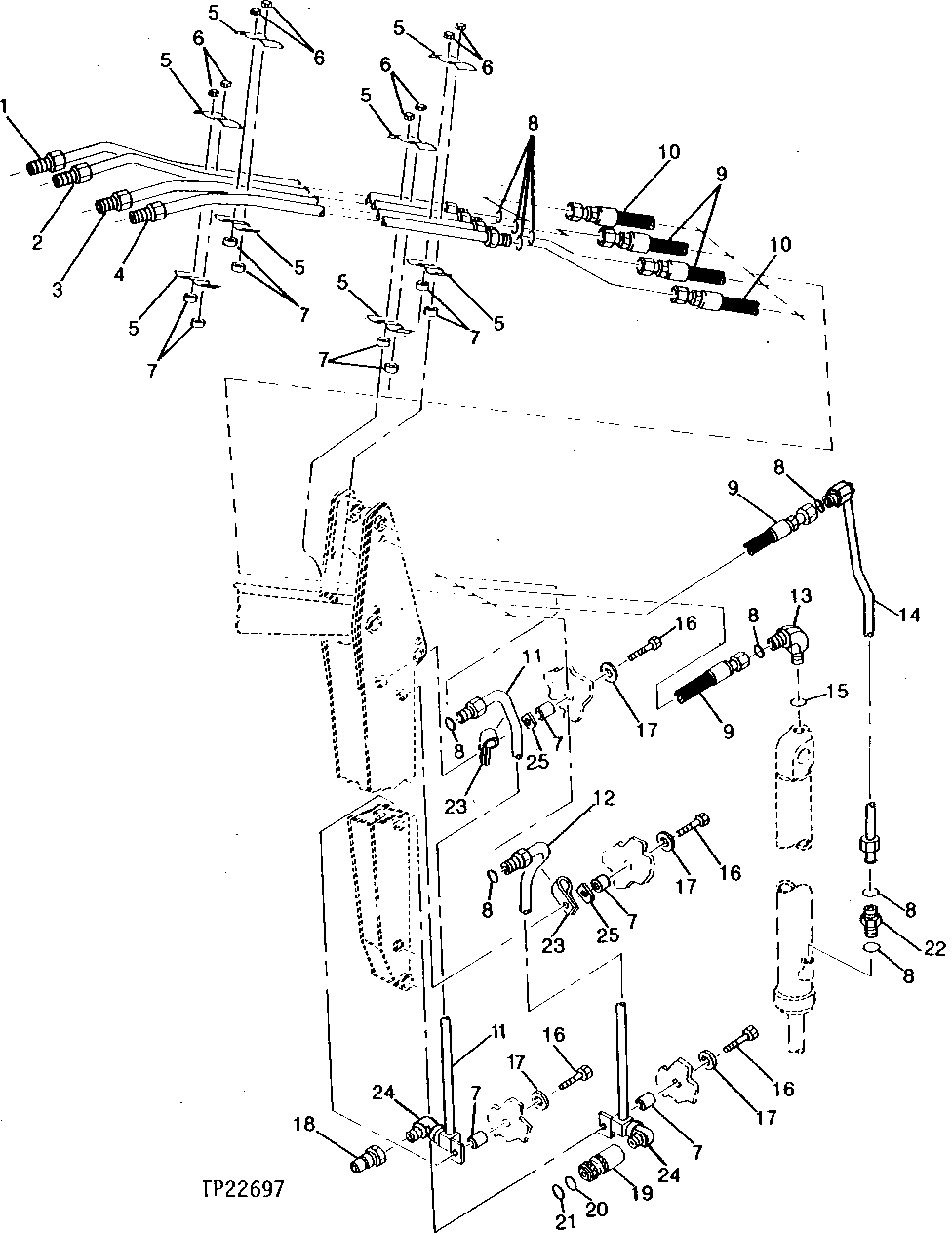

Запчасти John Deere 90CR 34 - BOOM AND ARM HYDRAULIC OIL LINES, HOSES AND FITTINGS 3360 - BACKHOE AND EXCAVATOR 33

1

AT80648

OIL LINE

1шт.

2

AT80649

OIL LINE

1шт.

3

AT80650

OIL LINE

1шт.

4

AT80651

OIL LINE

1шт.

5

T35868

CLAMP

8шт.

6

K40014

LOCK NUT

8шт.

7

Z24862

SPACER

12шт.

8

T76938

O-RING

10шт.

9

AT78298

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 118 MM (44") X 1-7/16"

2шт.

10

AT84344

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 310 MM (51-1/2") X 1-7/16"

2шт.

11

AT84346

OIL LINE

1шт.

12

AT84345

OIL LINE

1шт.

13

38H1037

ELBOW FITTING

1шт.

14

AT78283

OIL LINE

1шт.

15

R29936

O-RING

1шт.

16

19H2898

CAP SCREW

1/2" X 1-1/4"

4шт.

17

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

4шт.

18

AT33970

HYDR.QUICK COUPLER PLUG

1шт.

19

AT39581

HYDR.QUICK COUPLER SOCKET

1шт.

20

U12037

O-RING

1шт.

21

U40471

BACK-UP RING

1шт.

22

38H1164

ADAPTER FITTING

1шт.

23

T38350

CLIP

2шт.

24

T82316

ELBOW FITTING

2шт.

25

T82317

STRAP

2шт.
