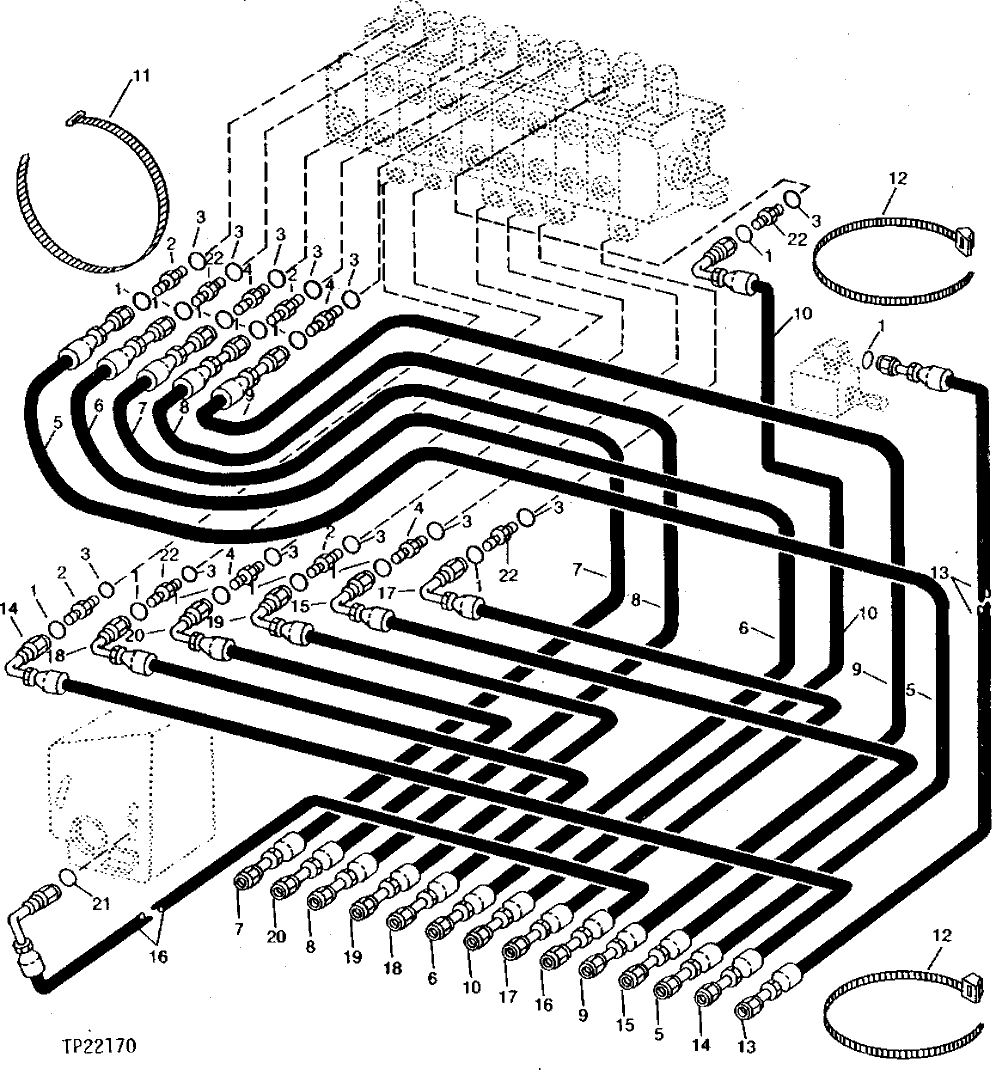

Запчасти John Deere 90CR 24 - PILOT CONTROL VALVE HOSES AND ADAPTERS 3360 - BACKHOE AND EXCAVATOR 33

1

T77613

O-RING

13шт.

2

38H1160

ADAPTER FITTING

10шт.

38H1160

ADAPTER FITTING

4шт.

3

R26448

O-RING

(SUB FOR T70177)

12шт.

4

T103528

ADAPTER FITTING

(BOOM SECTION)

2шт.

T103528

ADAPTER FITTING

4шт.

5

AT150240

HYDRAULIC HOSE - FABRICATE

(SWING, RIGHT) (SUB FOR AT79571 AND AT101771)

1шт.

6

AT79572

HYDRAULIC HOSE - FABRICATE

11/16" X 1 956 MM (77") X 11/16", (R.H. TRACK, REVERSE)

1шт.

7

AT79572

HYDRAULIC HOSE - FABRICATE

11/16" X 1 956 MM (77") X 11/16", (ARM CYLINDER RETRACT)

1шт.

8

AT79573

HYDRAULIC HOSE - FABRICATE

11/16" X 1 702 MM (67") X 11/16", (BUCKET CYLINDER RETRACT)

1шт.

9

AT79573

HYDRAULIC HOSE - FABRICATE

11/16" X 1 702 MM (67") X 11/16", (BOOM CYLINDER RETRACT)

1шт.

10

AT79775

HYDRAULIC HOSE - FABRICATE

11/16" X 1 746 MM (68-3/4") X 11/16", (L.H. TRACK, REVERSE)

1шт.

11

N189220

TIE BAND

(SUB FOR AA21510)

1шт.

12

N189220

TIE BAND

(SUB FOR (2) AA21510 OR (2) H113197)

2шт.

13

AT79569

HYDRAULIC HOSE - FABRICATE

11/16" X 838 MM (33") X 11/16", (PILOT PRESSURE INLET)

1шт.

14

AT79576

HYDRAULIC HOSE - FABRICATE

11/16" X 1 956 MM (77") X 11/16", (SWING, LEFT)

1шт.

15

AT79763

HYDRAULIC HOSE - FABRICATE

11/16" X 1 440 MM (56-3/4") X 11/16", (BOOM CYLINDER, EXTEND)

1шт.

16

AT79332

HYDRAULIC HOSE - FABRICATE

11/16" X 2 190 MM (86-1/4") X 13/16", (PILOT DRAIN)

1шт.

17

AT79763

HYDRAULIC HOSE - FABRICATE

11/16" X 1 440 MM (56-3/4") X 11/16", (L.H. TRACK, FORWARD)

1шт.

18

AT79775

HYDRAULIC HOSE - FABRICATE

11/16" X 1 746 MM (68-3/4") X 11/16", (R.H. TRACK, FORWARD)

1шт.

19

AT79763

HYDRAULIC HOSE - FABRICATE

11/16" X 1 440 MM (56-3/4") X 11/16", (BUCKET CYLINDER, EXTEND)

1шт.

20

AT79775

HYDRAULIC HOSE - FABRICATE

11/16" X 1 746 MM (68-3/4") X 11/16", (ARM CYLINDER, EXTEND)

1шт.

21

T77857

O-RING

1шт.

22

T114633

FITTING

(ALL PROPEL FUNCTIONS)

4шт.
