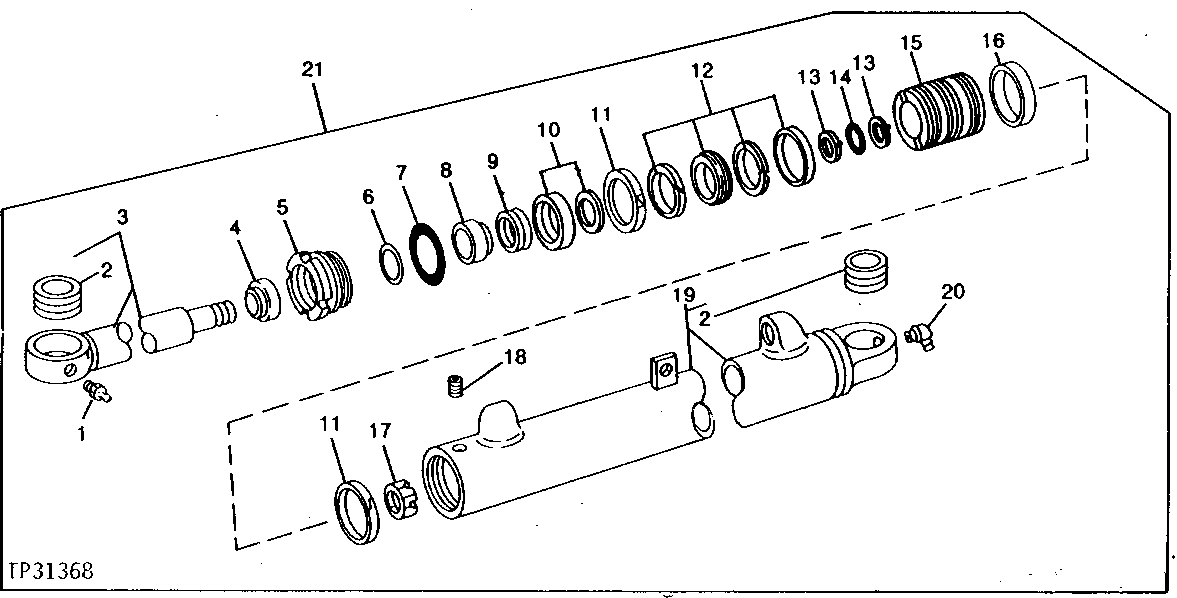

Запчасти John Deere 90CR 16 - BOOM CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

JD7759

LUBRICATION FITTING

1шт.

2

U43784

BUSHING

2шт.

3

RE21396

HYDRAULIC CYLINDER ROD

1шт.

4

RE21398

SEAL

(RK)

1шт.

5

R82411

GUIDE

1шт.

6

R79177

BACK-UP RING

(BK)

1шт.

7

T38489

O-RING

(BK)

1шт.

8

RE21397

SEAL

(RK)

1шт.

9

R82412

WEAR RING

(RK)

1шт.

10

RE21399

SEAL

(RK)

1шт.

11

T34515

PISTON RING

2шт.

12

RE11910

SEAL

(BK)

1шт.

13

R78391

BACK-UP RING

(RK)

2шт.

14

U10289

O-RING

(RK)

1шт.

15

R81107

PISTON

1шт.

16

U44508

WEAR RING

(BK)

1шт.

17

U10750

LOCK NUT

1шт.

18

22H1077

SET SCREW

1/4" X 5/16"

1шт.

19

RE19057

HYDRAULIC CYLINDER BARREL

1шт.

20

JD7763

LUBRICATION FITTING

1шт.

21

RE21394

HYDRAULIC CYLINDER

1шт.
