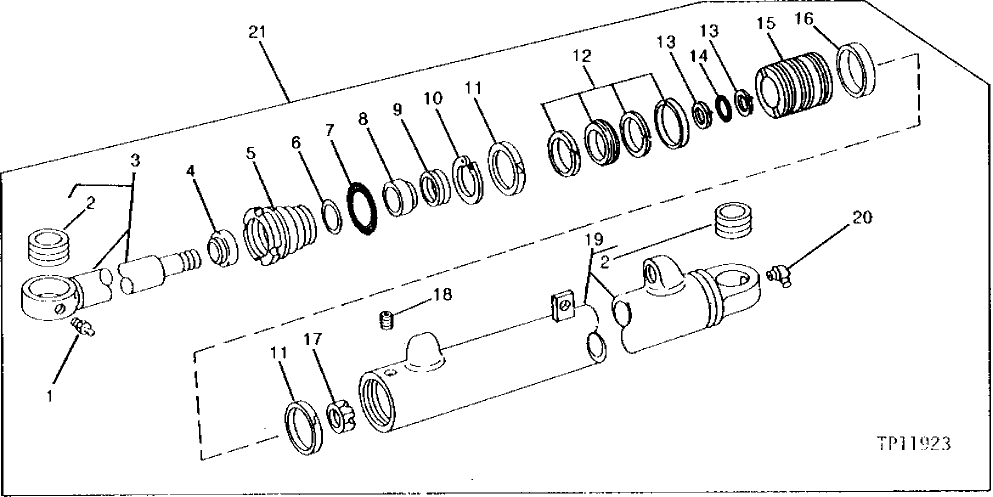

Запчасти John Deere 90CR 15B - BOOM CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

JD7759

LUBRICATION FITTING

1шт.

2

U43784

BUSHING

2шт.

3

AR89436

ROD

1шт.

4

U43388

SEAL

(RK)

1шт.

5

R69278

GUIDE

(SUB R82411, RE21395, R79177 AND T38489)

1шт.

6

R79177

BACK-UP RING

(BK)

1шт.

7

T38489

O-RING

(BK)

1шт.

8

U43389

WEAR RING

(RK)

1шт.

9

R76782

SEAL

(RK)

1шт.

10

U43391

SNAP RING

1шт.

11

T34515

PISTON RING

2шт.

12

RE11910

SEAL

(BK)

1шт.

13

R78391

BACK-UP RING

(RK)

2шт.

14

U10289

O-RING

(RK)

1шт.

15

R81107

PISTON

1шт.

16

U44508

WEAR RING

(BK)

1шт.

17

U10750

LOCK NUT

1шт.

18

22H842

SET SCREW

1/4" X 5/16"

1шт.

19

RE19057

HYDRAULIC CYLINDER BARREL

1шт.

20

JD7763

LUBRICATION FITTING

1шт.

21

RE18949

HYDRAULIC CYLINDER

(SUB RE21394, AT84147, AT84148, (2) 38H1194, (2) T77858 AND (2) R29936)

1шт.
