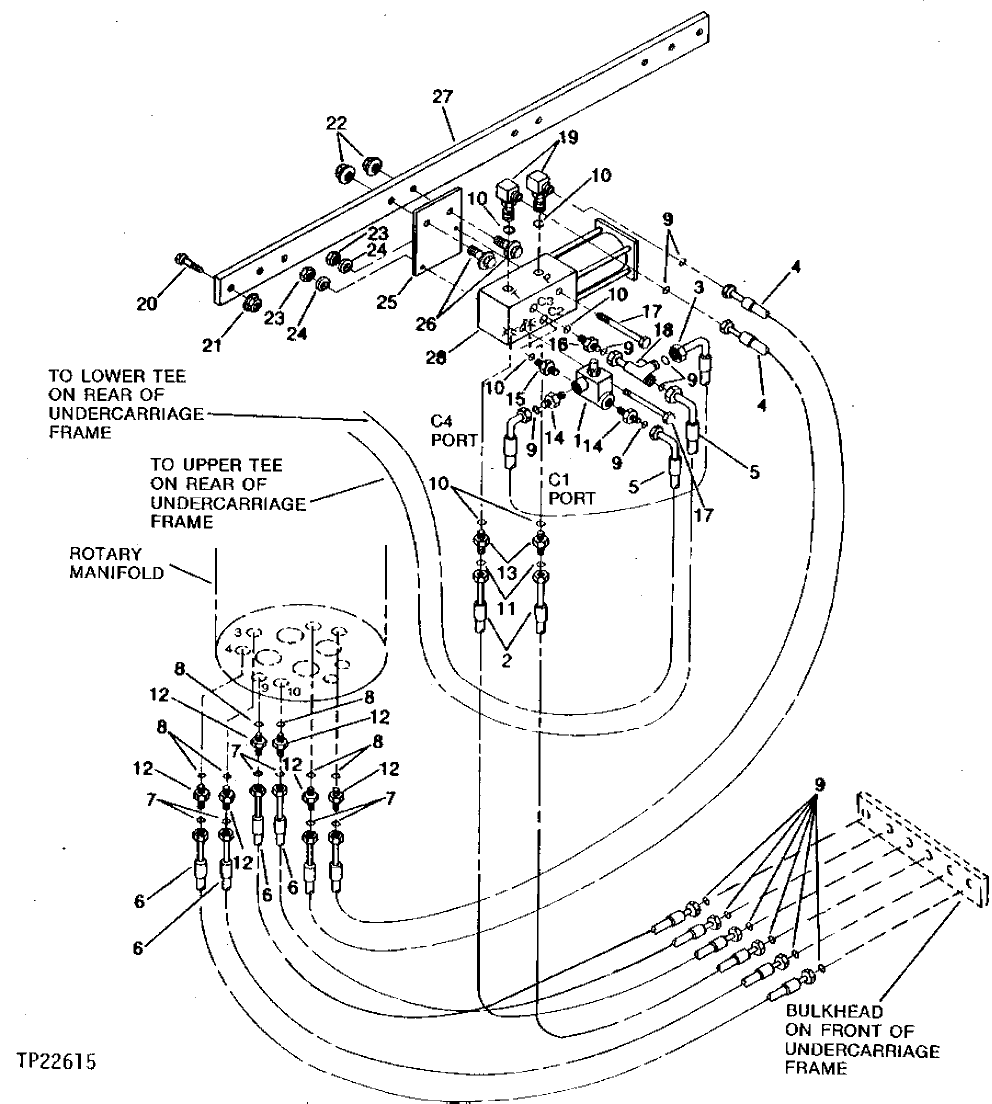

Запчасти John Deere 90CR 10 - LOWER DOZER HYDRAULICS (C) 3260 - DOZERS 32

1

AT18944

PRESSURE RELIEF VALVE

1шт.

2

AT81907

HYDRAULIC HOSE - FABRICATE

11/16" X 1 000 MM (39-1/4") X 13/16"

2шт.

3

AT81908

HYDRAULIC HOSE - FABRICATE

11/16" X 450 MM (17-3/4") X 11/16"

1шт.

4

AT81910

HYDRAULIC HOSE - FABRICATE

11/16" X 600 MM (23-1/2") X 13/16"

2шт.

5

AT81906

HYDRAULIC HOSE - FABRICATE

11/16" X 1 355 MM (53-1/4") X 11/16"

2шт.

6

AT81911

HYDRAULIC HOSE - FABRICATE

11/16" X 1 350 MM (53-1/4") X 13/16"

4шт.

7

T77857

O-RING

6шт.

8

R47150

O-RING

6шт.

9

T77613

O-RING

13шт.

10

R26448

O-RING

(SUB FOR T70177)

6шт.

11

T77857

O-RING

2шт.

12

38H1161

ADAPTER FITTING

6шт.

13

38H1173

ADAPTER FITTING

2шт.

14

T81030

ADAPTER FITTING

2шт.

15

T38693

FITTING

1шт.

16

38H1160

ADAPTER FITTING

1шт.

17

19H3171

CAP SCREW

1/4" X 3-1/4"

2шт.

18

38H1030

TEE FITTING

1шт.

19

38H1004

ELBOW FITTING

2шт.

20

19M7789

SCREW

M12 X 30

2шт.

21

14M7299

FLANGE NUT

M12

2шт.

22

14M7296

FLANGE NUT

M10

2шт.

23

M40333

LOCK NUT

2шт.

24

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

25

T114697

BRACKET

1шт.

26

19M7786

SCREW

M10 X 30

2шт.

27

T80443

STRAP

1шт.

28

AT105616

SELECTIVE CONTROL VALVE

1шт.
