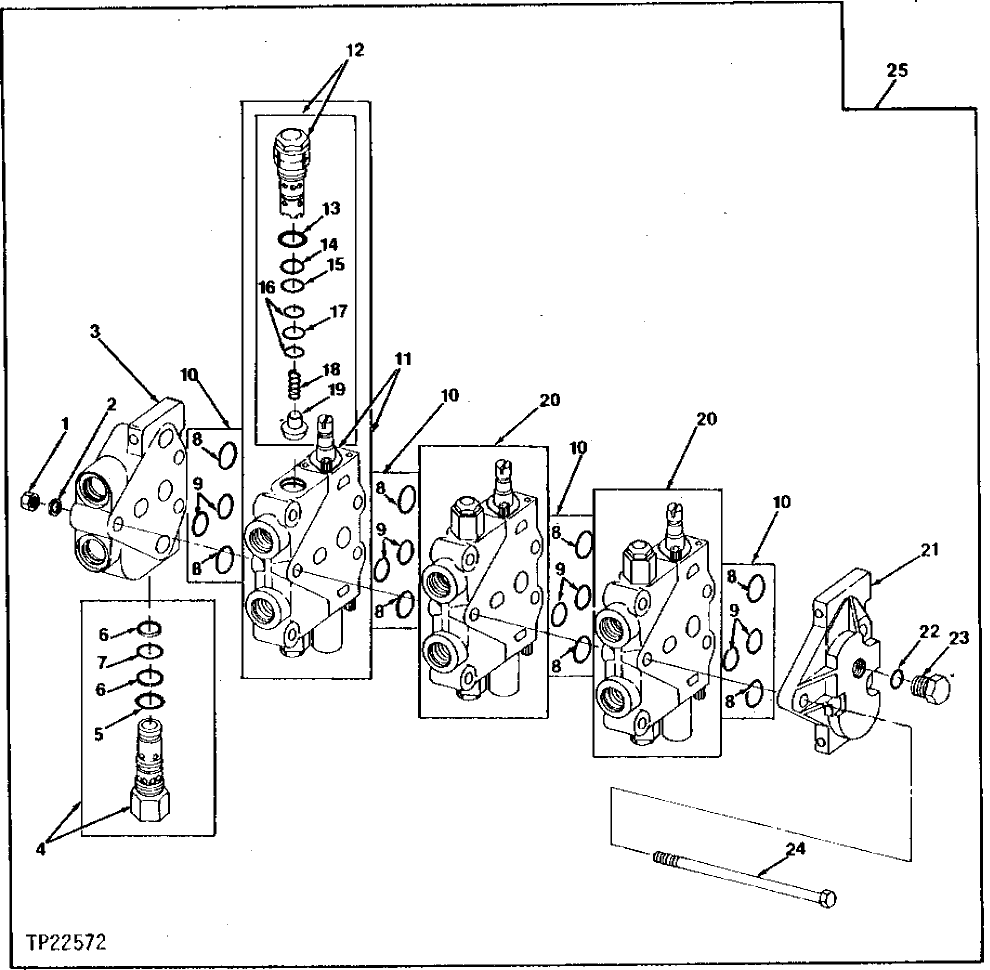

Запчасти John Deere 90CR 2 - DOZER CONTROL VALVE 3260 - DOZERS 32

1

14H1076

NUT

3/8"

3шт.

2

12H236

LOCK WASHER

3/4"

3шт.

3

T81405

COVER

(ALSO ORDER AT160682)

1шт.

4

AT82920

PRESSURE RELIEF VALVE

SYSTEM (2250 PSI)

1шт.

5

V15242

PART HAS SUB

1шт.

6

T47769

BACK-UP RING

2шт.

7

T44948

O-RING

1шт.

8

T30423

O-RING

(K1)

8шт.

9

T75984

O-RING

(K1) (SUB FOR T35990)

8шт.

10

19H3394

CAP SCREW

3/8" X 8"

3шт.

11

VALVE

DOZER LIFT

1шт.

12

AT68646

PRESSURE RELIEF VALVE

(INCLUDES AW17093) (ONE ILLUSTRATED, TWO PER CIRCUIT)

3шт.

AW17093

KIT

1шт.

13

W19903

O-RING

(K)

1шт.

14

T35985

BACK-UP RING

(K)

1шт.

15

Z29304

O-RING

(K)

1шт.

16

T35984

BACK-UP RING

2шт.

17

H63283

O-RING

1шт.

18

SPRING

(SUB AT68646)

1шт.

19

CHECK VALVE

(SUB AT68646)

1шт.

20

VALVE

DOZER TILT AND ANGLE

2шт.

21

T145619

COVER

(SUB FOR T81404 AND T135859) (ALSO ORDER AT160682)

1шт.

22

U17409

O-RING

1шт.

23

R49465

DRAIN PLUG

1.18 INCH

1шт.

24

GANG BOLT

3шт.

25

AT80282

VALVE

1шт.
