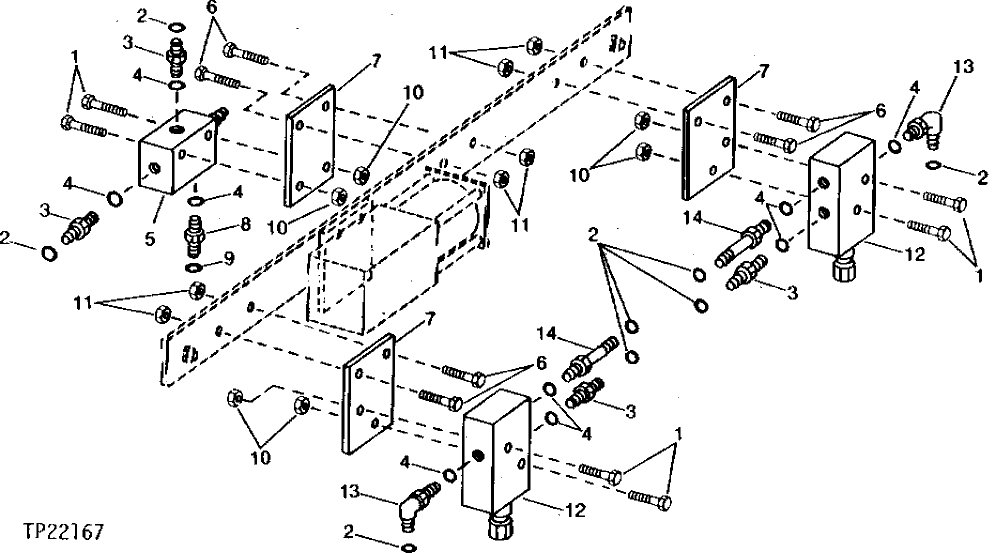

Запчасти John Deere 90CR 24 - PRESSURE REDUCING VALVE, BRAKE DUMP VALVE AND MOUNTING PARTS 2160 - MAIN HYDRAULIC SYSTEM 21

1

19M8321

SCREW

6шт.

2

T77613

O-RING

8шт.

3

38H1160

ADAPTER FITTING

4шт.

4

R26448

O-RING

(SUB FOR T70177)

9шт.

5

AT115266

VALVE

BRAKE PUMP PILOT

1шт.

6

14M7296

FLANGE NUT

6шт.

7

T114697

BRACKET

3шт.

8

38H1173

ADAPTER FITTING

1шт.

9

T77857

O-RING

1шт.

10

14M7303

FLANGE NUT

6шт.

11

14M7296

FLANGE NUT

6шт.

12

AT68904

HYDRAULIC PRESSURE VALVE

PRESSURE REDUCING

2шт.

13

38H1004

ELBOW FITTING

2шт.

14

38H1212

ADAPTER FITTING

2шт.
