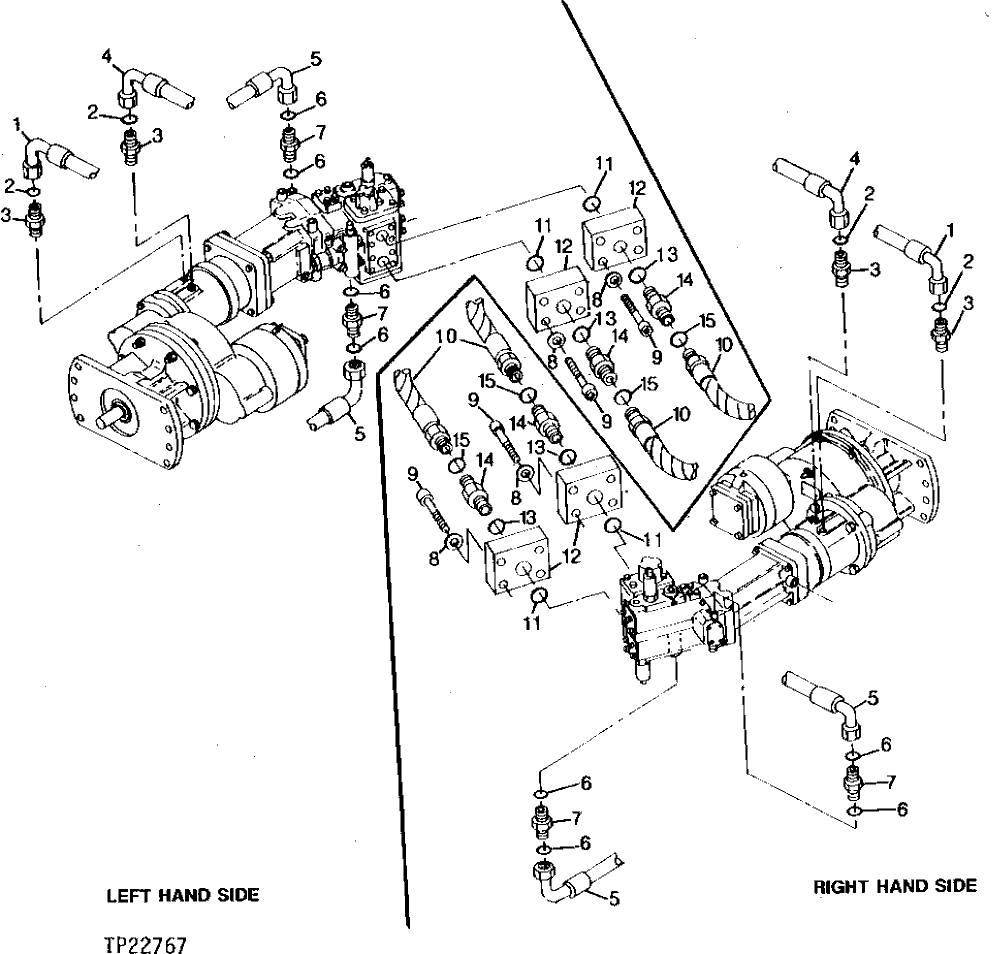

Запчасти John Deere 90CR 20 - UNDERCARRIAGE HYDRAULIC OIL LINES 2160 - MAIN HYDRAULIC SYSTEM 21

1

AT82381

HYDRAULIC HOSE - FABRICATE

11/16" X 1 100 MM (43-1/4") X 11/16"

2шт.

2

T77857

O-RING

4шт.

3

M87733

ADAPTER FITTING

4шт.

4

AT81931

HYDRAULIC HOSE - FABRICATE

11/16" X 515 MM (20-1/4") X 11/16"

2шт.

5

AT105525

HYDRAULIC HOSE - FABRICATE

11/16" X 980 MM (38-1/2") X 11/16"

3шт.

6

T77613

O-RING

10шт.

7

38H1160

ADAPTER FITTING

4шт.

8

R26448

O-RING

4шт.

9

19M8444

SCREW

M12 X 60

4шт.

10

AT78298

HYDRAULIC HOSE - FABRICATE

1-7/16" X 1 118 MM (44") X 1-7/16"

4шт.

11

T72216

O-RING

4шт.

12

T80444

JUNCTION BLOCK

4шт.

13

R29936

O-RING

4шт.

14

38H1164

ADAPTER FITTING

4шт.

15

T76938

O-RING

4шт.

17

19M8444

SCREW

M12 X 60

4шт.
