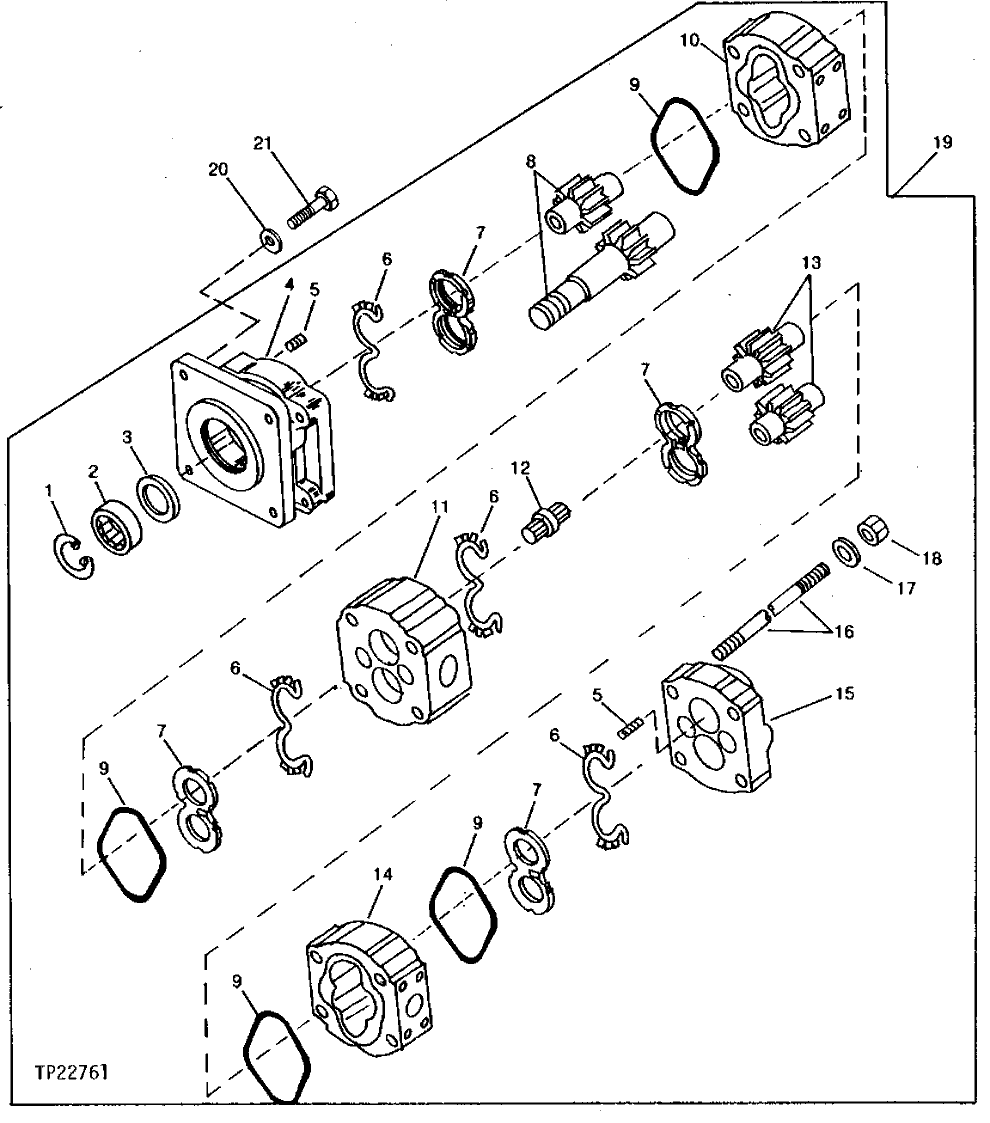

Запчасти John Deere 90CR 6 - HYDRAULIC PUMP 2160 - MAIN HYDRAULIC SYSTEM 21

1

N71921

SNAP RING

1шт.

2

JD10472

BALL BEARING

(SUB FOR AT82148)

1шт.

3

T81110

SEAL

(K1)

1шт.

4

AT82147

COVER

1шт.

5

R78754

SET SCREW

2шт.

6

SEAL

(K2) CHANNEL, (SUB AT80307)

4шт.

7

PLATE

(K2)

4шт.

8

GEAR

(MATCHED SET) (SUB AT80307)

1шт.

9

GASKET

(K1) (SUB AT80307)

4шт.

10

HOUSING

(SUB AT80307)

1шт.

11

HOUSING

(SUB AT80307)

1шт.

12

SHAFT

(SUB AT80307)

1шт.

13

GEAR

(MATCHED SET) (SUB AT80307)

1шт.

14

HOUSING

(SUB AT80307)

1шт.

15

COVER

FRONT, (SUB AT80307)

1шт.

16

T62146

ROD

4шт.

17

24M7241

WASHER

17 X 34 X 4 MM, (SUB FOR T40728)

4шт.

18

14H1039

NUT

5/8"

4шт.

19

AT80307

HYDRAULIC PUMP

1шт.

20

T20168

WASHER

4шт.

21

19H2473

CAP SCREW

1/2" X 1-3/4"

4шт.
