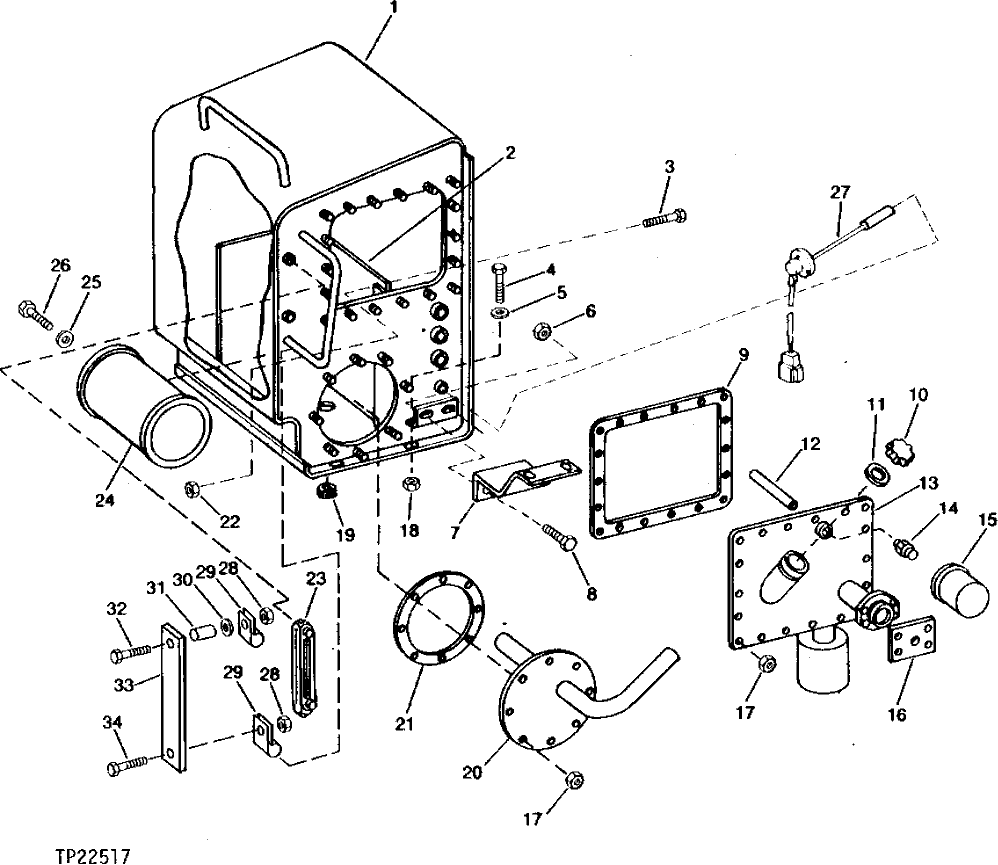

Запчасти John Deere 90CR 4 - HYDRAULIC RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21

1

AT84261

HYDRAULIC RESERVOIR

1шт.

2

T79618

ANGLE

1шт.

3

19M7785

SCREW

M10 X 25

2шт.

4

19M7597

CAP SCREW

M20 X 50

3шт.

5

24M7242

WASHER

21.400 X 42 X 5 MM

6шт.

6

14M7299

FLANGE NUT

M12

2шт.

7

T79622

BRACKET

1шт.

8

19M7789

SCREW

M12 X 30

2шт.

9

T81263

GASKET

1шт.

10

T50842

FILLER CAP

1шт.

11

T103461

SEALING WASHER

1шт.

12

29H118

THREADED NIPPLE

1/4"

1шт.

13

AT79586

DIFFUSER

1шт.

14

AT79591

PRESSURE RELIEF VALVE

1шт.

15

AT79590

OIL FILTER

BREATHER

1шт.

16

T79623

FLANGE

1шт.

17

14M7296

FLANGE NUT

M10

26шт.

18

14M7230

LOCK NUT

M20

3шт.

19

U17027

FITTING

1шт.

20

AT79588

COVER

1шт.

21

T103822

GASKET

1шт.

22

14M7296

FLANGE NUT

M10

2шт.

23

AT79589

LEVEL GAUGE

1шт.

24

AT79587

FILTER

MAIN HYDRAULIC RESERVOIR

1шт.

25

24H1219

WASHER

7/16" X 1" X 0.083"

1шт.

26

19H3459

CAP SCREW

3/8" X 13-1/2"

1шт.

27

AT120609

SENDER

HYDRAULIC OIL TEMPERATURE, (SUB FOR AT115442)

1шт.

28

14M7296

FLANGE NUT

M10

2шт.

29

R64212

HALF CLAMP

2шт.

30

24M7296

WASHER

10.500 X 30 X 2.500 MM

1шт.

31

28H3380

SPACER

0.493" X 0.675" X 1-5/8"

1шт.

32

19M8499

CAP SCREW

M10 X 60

1шт.

33

T82257

STRAP

1шт.

34

19M7938

CAP SCREW

M10 X 20

1шт.
