Запчасти John Deere 90CR 11 - UNDERCARRIAGE AND DOZER CYLINDER GUARDS 1910 - SHEET METAL AND STYLING 19

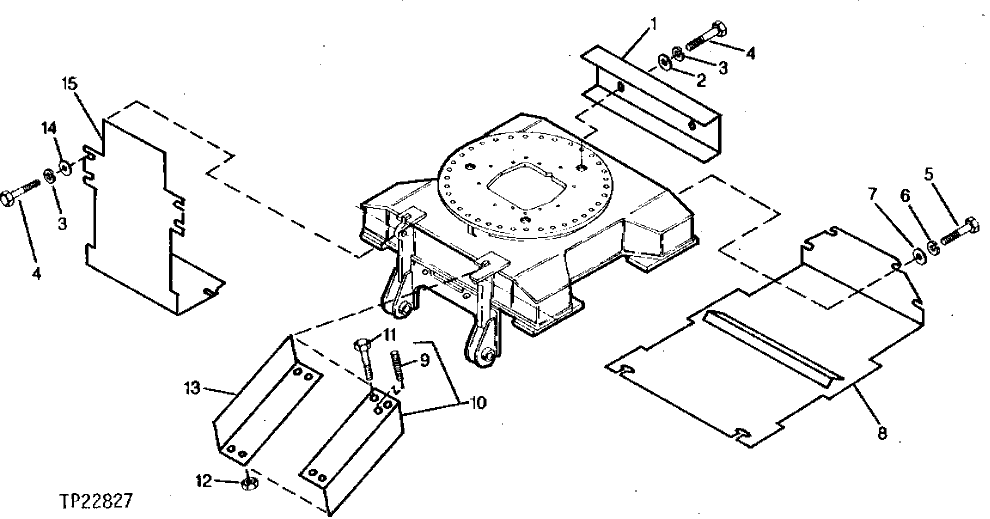

Схема запчастей John Deere 90CR - 11 - UNDERCARRIAGE AND DOZER CYLINDER GUARDS 1910 - SHEET METAL AND STYLING 19

Артикул

Название

Примечание

Количество

1

T103321

CHANNEL

1шт.

2

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

2шт.

3

12H301

LOCK WASHER

1/2"

8шт.

4

19H2898

CAP SCREW

1/2" X 1-1/4"

8шт.

5

19H2717

CAP SCREW

3/4" X 1-3/4"

6шт.

6

12H236

LOCK WASHER

6шт.

7

24H1402

WASHER

25/32" X 1-7/8" X 1/4"

6шт.

8

AT105382

GUARD

1шт.

9

U41047

STUD

1шт.

10

AT105378

GUARD

LEFT LIFT CYLINDER

1шт.

11

19M7638

CAP SCREW

M10 X 130

8шт.

12

14M7274

NUT

M10

8шт.

13

T82246

ANGLE

LEFT LIFT CYLINDER (1), RIGHT LIFT CYLINDER (2) AND ANGLE CYLINDERS (4)

7шт.

14

24H1850

WASHER

17/32" X 1-1/4" X 0.180"

6шт.

15

T103322

GUARD

1шт.

Выбрано товаров: 15
