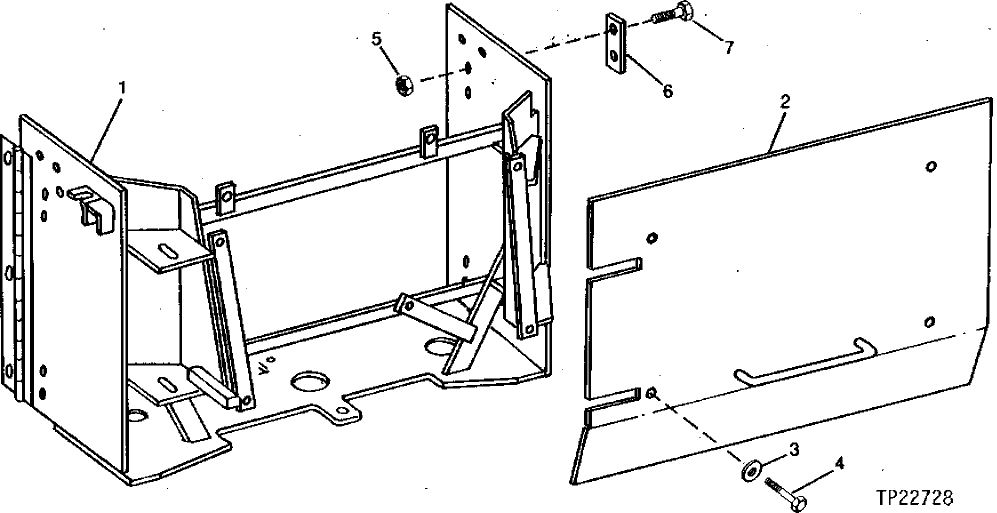

Запчасти John Deere 90CR 7 - GRILLE 1910 - SHEET METAL AND STYLING 19

1

AT83749

SUPPORT

1шт.

19H3523

CAP SCREW

3/4" X 12-1/4", GRILLE SUPPORT TO FRAME

4шт.

24H1181

WASHER

13/16" X 1-1/8" X 0.060"

4шт.

2

AT105659

COVER

1шт.

3

24M7296

WASHER

10.500 X 30 X 2.500 MM

4шт.

4

19M7938

CAP SCREW

M10 X 20

4шт.

5

14M7291

FLANGE NUT

M16

8шт.

6

T81909

STRAP

4шт.

7

19M7827

SCREW

M16 X 80

8шт.
