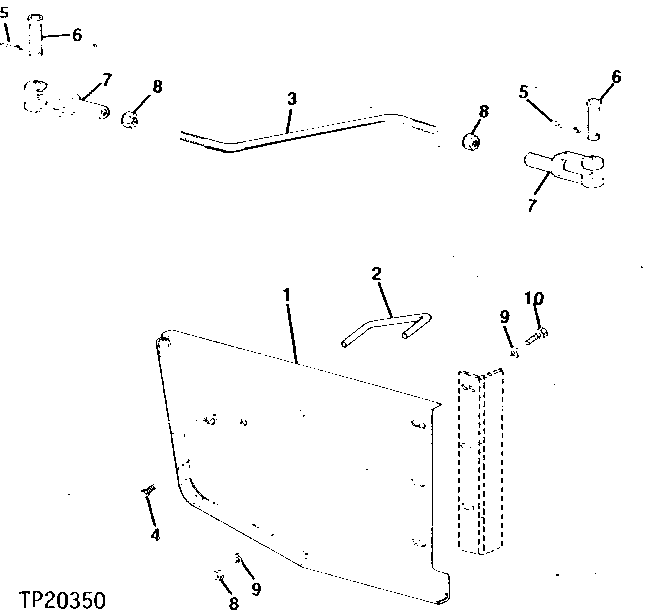

Запчасти John Deere 90CR 6 - ENGINE SERVICE DOOR 1910 - SHEET METAL AND STYLING 19

1

AT84255

DOOR

1шт.

ISOLATOR

5 FT., FRONT AND BOTTOM (MAKE FROM T63949 BULK MATERIAL, CUT TO LENGTH)

1шт.

SEAL

3 FT., TOP (MAKE FROM T58341 BULK MATERIAL, CUT TO LENGTH)

1шт.

2

T79490

HANDLE

1шт.

3

T79435

LEVER

1шт.

4

19M7783

SCREW

M10 X 16

2шт.

5

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR 11M7080)

1шт.

R46528

SPRING LOCKING PIN

1шт.

6

45M7059

PIN FASTENER

10 X 30 MM

2шт.

7

54M4422

YOKE

2шт.

8

14M7274

NUT

M10

5шт.

9

24M7296

WASHER

10.500 X 30 X 2.500 MM

6шт.

10

19M7938

CAP SCREW

M10 X 20

3шт.
