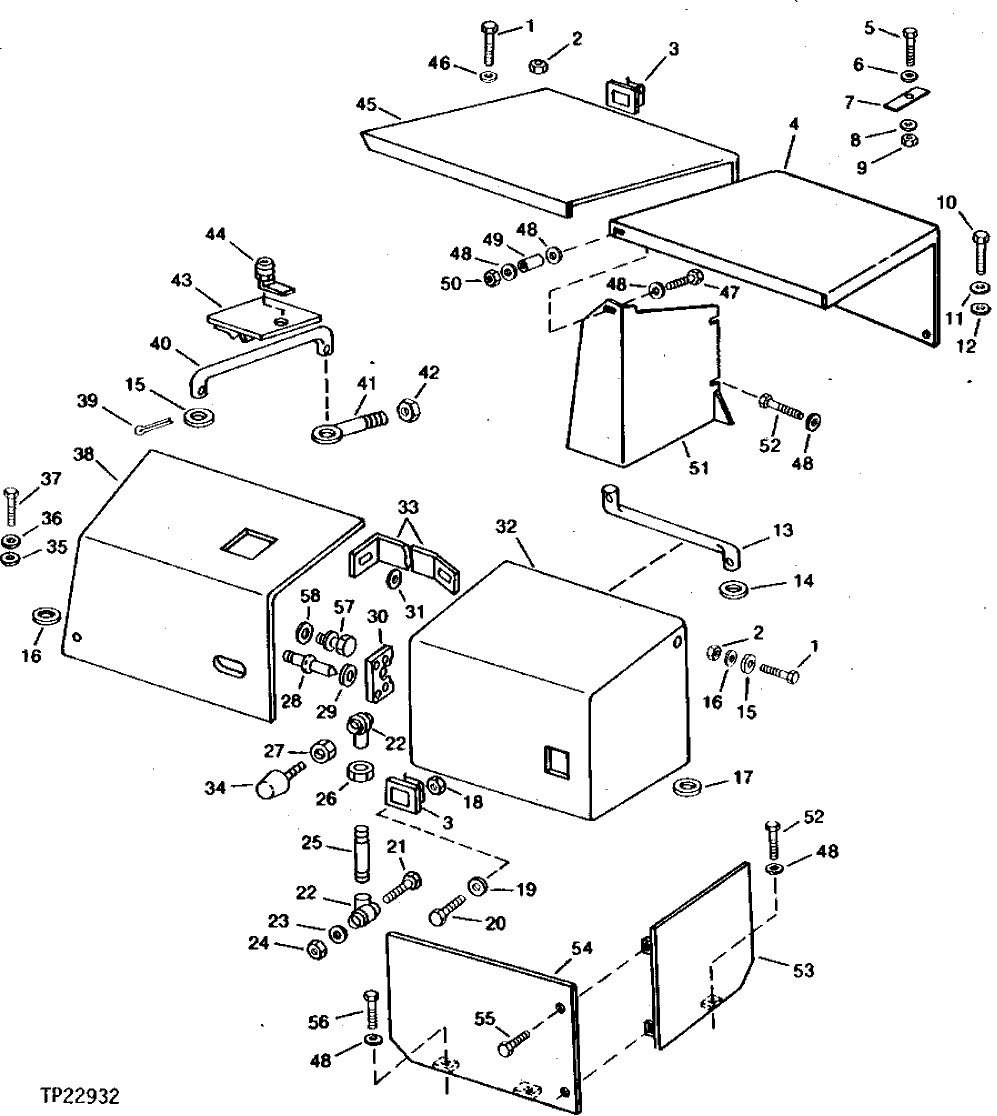

Запчасти John Deere 90CR 4 - FENDERS AND BACKING PLATES 1910 - SHEET METAL AND STYLING 19

1

19M7827

SCREW

M16 X 80

3шт.

2

14M7291

FLANGE NUT

M16

3шт.

3

AT79581

LATCH

2шт.

4

AT84046

FENDER

LEFT FRONT

1шт.

28H207

BUSHING

0.493" X 0.675" X 2-3/8"

1шт.

5

19M7638

CAP SCREW

M10 X 130, (ALSO ORDER T69145, 24H1318 AND (4) 24M7296)

ARшт.

6

24H1318

WASHER

7/16" X 2" X 0.134"

1шт.

7

STRAP

(NOT AVAILABLE FOR SERVICE)

1шт.

8

24M7296

WASHER

10.500 X 30 X 2.500 MM

ARшт.

9

14M7296

FLANGE NUT

2шт.

10

19M7786

SCREW

M10 X 30

2шт.

11

24M7239

WASHER

10.700 X 21 X 2.500 MM

8шт.

12

28H2659

BUSHING

0.423" X 0.675" X 2-3/4"

1шт.

13

T79579

PIN FASTENER

1шт.

14

24M7034

WASHER

3шт.

15

A17870

BUSHING

2шт.

16

N72306

WASHER

4шт.

17

T47576

WASHER

2шт.

18

14M7272

NUT

M6

8шт.

19

12H302

LOCK WASHER

1/4"

16шт.

20

19M7874

CAP SCREW

M6 X 30

8шт.

21

19H3204

SCREW

0.190" X 5/8"

4шт.

22

AH108055

LINK END

4шт.

23

R28695

WASHER

21/32" X 1-5/8" X 0.180"

ARшт.

24

T531T

LOCK NUT

4шт.

25

T65795

STUD

2шт.

26

14H631

NUT

0.190"

4шт.

27

14M7273

NUT

M8

4шт.

28

R77914

RIVET

8шт.

29

R52119

WASHER

6шт.

30

AT80781

LATCH

2шт.

31

24M7055

WASHER

8.400 X 16 X 1.600 MM

2шт.

32

AT79579

FENDER

1шт.

33

T79578

REINFORCEMENT

1шт.

34

AT59634

BUMPER

2шт.

35

28H3380

SPACER

0.493" X 0.675" X 1-5/8"

1шт.

36

24M7296

WASHER

10.500 X 30 X 2.500 MM

ARшт.

37

19M7810

SCREW

M10 X 80

1шт.

38

AT84045

FENDER

RIGHT REAR

1шт.

19M7638

CAP SCREW

M10 X 130

3шт.

24H1318

WASHER

7/16" X 2" X 0.134", GRILLE SCREW

2шт.

28H1508

SPACER

0.493" X 0.675" X 1-1/4"

1шт.

39

11M7087

COTTER PIN

4 X 40 MM, (SUB FOR 11M7023)

4шт.

40

AT105848

ROD

1шт.

41

Z36731

EYEBOLT

4шт.

42

14M7276

NUT

M16

2шт.

43

AT42071

COVER

1шт.

44

AT38176

LOCK

2шт.

45

AT105731

FENDER

1шт.

T81914

PIN FASTENER

PIVOT SPACERS TO GRILLE SUPPORTS

2шт.

28316

SPRING LOCKING PIN

2шт.

46

R28695

WASHER

ARшт.

47

19M8166

CAP SCREW

M10 X 110, (SUB FOR 19M7346)

1шт.

48

24M7296

WASHER

10.500 X 30 X 2.500 MM

9шт.

49

28H207

BUSHING

0.493" X 0.675" X 2-3/8"

1шт.

50

14M7296

FLANGE NUT

M10

1шт.

51

AT84257

PLATE

1шт.

52

19M7938

CAP SCREW

M10 X 20

3шт.

53

AT105834

PLATE

1шт.

54

AT105833

PLATE

1шт.

55

19M7783

SCREW

M10 X 16

2шт.

56

19M7785

SCREW

M10 X 25

2шт.

57

AT59896

STRIKER

2шт.

58

T21242

WASHER

ARшт.
