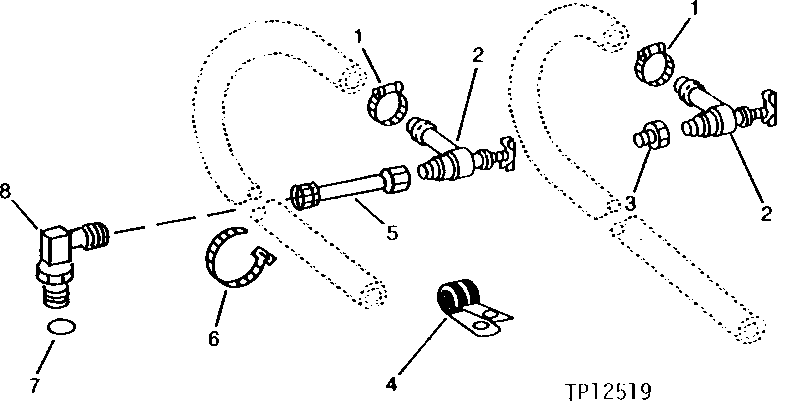

Запчасти John Deere 90CR 21 - HEATER LINES, VALVES AND CONNECTORS 1830 - OPERATORS STATION 18

1

AR21837

CLAMP

4шт.

2

AT105319

HAND OPERATED VALVE

2шт.

AT35831

DRAIN VALVE

WITH AIR CONDITIONING

2шт.

3

15H619

PIPE BUSHING

3/8"

1шт.

4

P42987

CLAMP

1шт.

5

AT79602

OIL LINE

1шт.

6

R44302

TIE BAND

NOT ILLUSTRATED

ARшт.

7

R26906

O-RING

1шт.

8

AR26724

ELBOW FITTING

1шт.

R26627

NUT

1шт.

9

19M8318

SCREW

M8 X 45

1шт.

14M7298

FLANGE NUT

M8

1шт.

10

T103301

HOSE FITTING

(USE WITH AT105319)

1шт.
