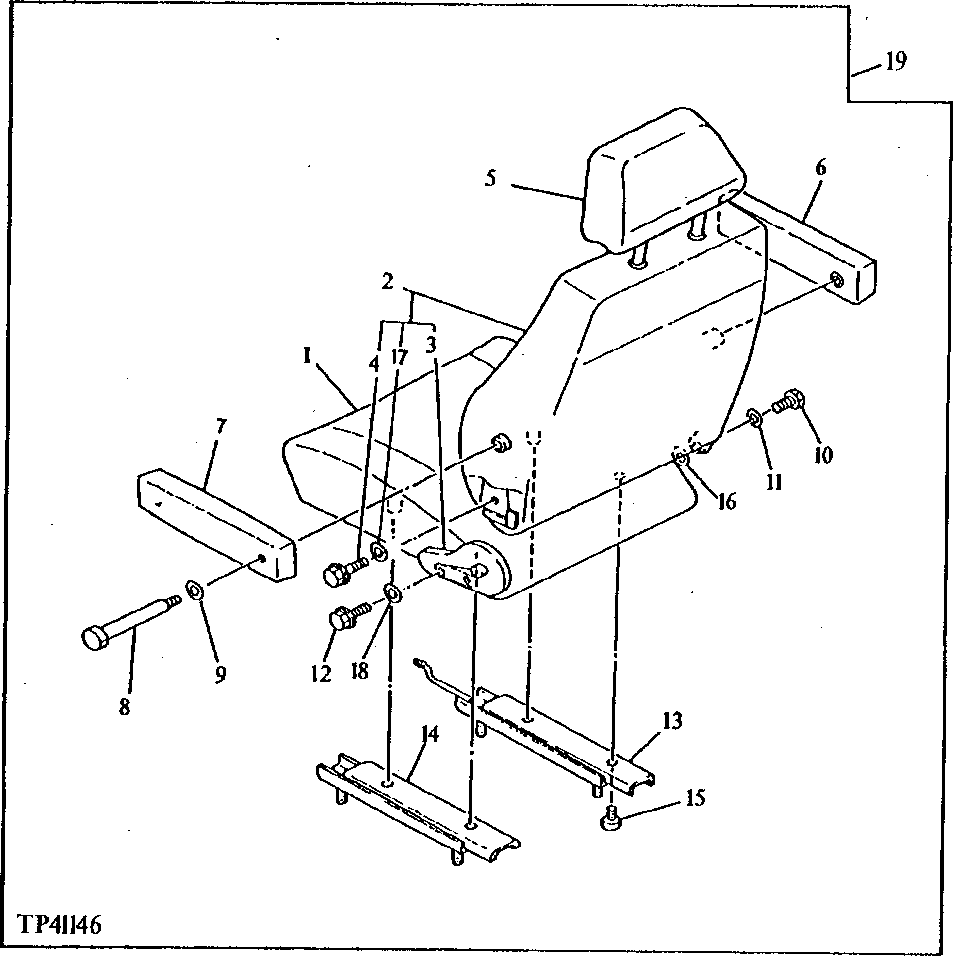

Запчасти John Deere 90CR 6 - SEAT 1821 - OPERATORS STATION 18

1

0368101

CUSHION

(SUB FOR AT126054)

1шт.

2

0368102

SEAT BACK

(SUB FOR AT126055)

1шт.

3

0340803

ADJUSTER

(SUB FOR TH111648)

1шт.

4

19M7402

CAP SCREW

M10 X 25, (SUB FOR TH104152, ALONG WITH 12M7066)

2шт.

5

0368103

HEAD RESTRAINT

(SUB FOR AT126056)

1шт.

6

0368104

ARM

(SUB FOR AT126057) (RIGHT)

1шт.

7

0368105

ARM

(SUB FOR AT126058) (LEFT)

1шт.

8

0340807

BOLT

(SUB FOR TH111652)

2шт.

9

0262710

WASHER

(SUB FOR TH104154)

2шт.

10

0262709

BOLT

(SUB FOR TH104153)

1шт.

11

0262710

WASHER

(SUB FOR TH104154)

1шт.

12

19M7402

CAP SCREW

M10 X 25, (SUB FOR TH104152, ALONG WITH 12M7066)

2шт.

13

0368106

ADJUSTER

(SUB FOR AT126059)

1шт.

14

0304003

ADJUSTER

(SUB FOR TH107001)

1шт.

15

0340808

SCREW

(SUB FOR TH111653)

4шт.

16

12M7056

LOCK WASHER

8 MM, (SUB FOR TH104155) (SUB FOR 12M7065)

1шт.

17

12M7066

LOCK WASHER

10 MM

2шт.

18

12M7066

LOCK WASHER

10 MM

2шт.

19

4230833

SEAT

(SUB FOR TH112076) (CLOTH) (SUB FOR TH100641 VINYL SEAT)

1шт.
