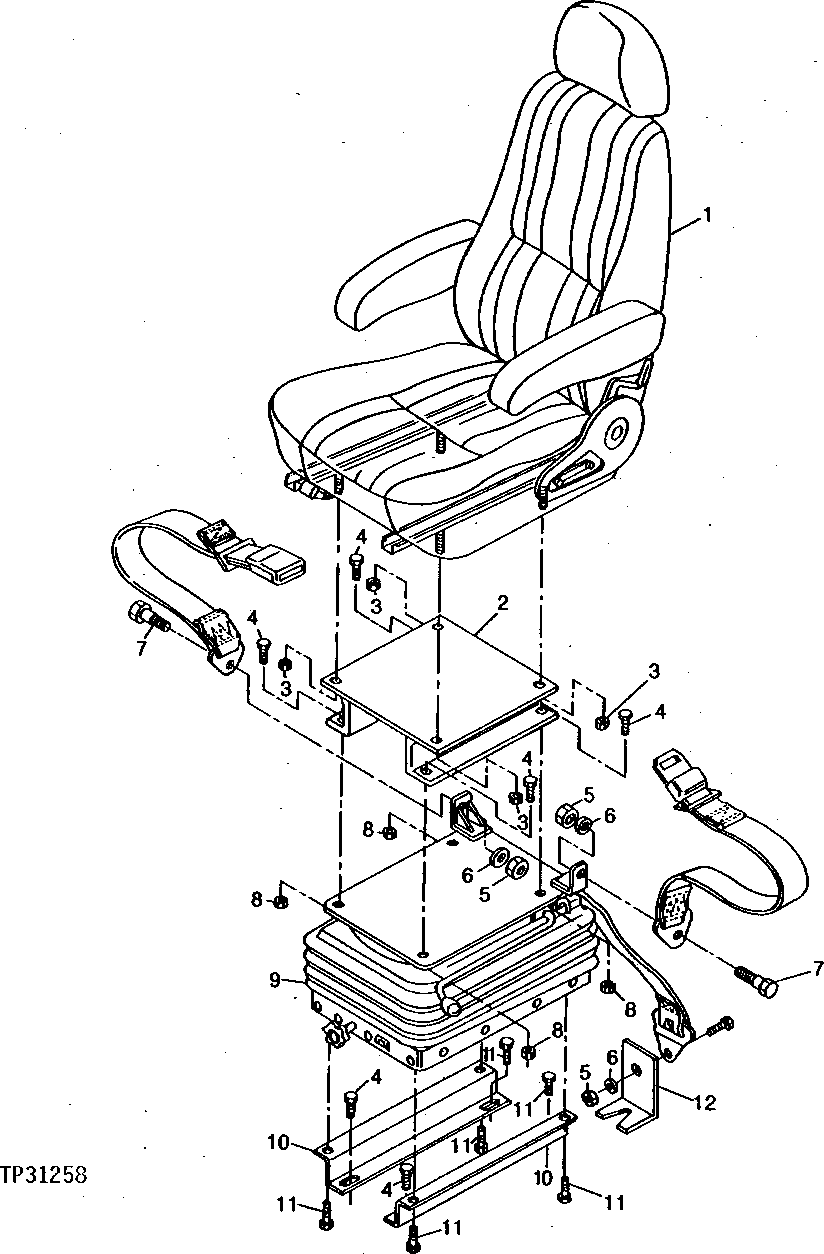

Запчасти John Deere 90CR 2 - SEAT AND SEAT SUPPORT 1821 - OPERATORS STATION 18

1

4230833

SEAT

(SUB FOR TH112076) (CLOTH) (SUB FOR TH100641 VINYL SEAT)

1шт.

2

AT80767

SUPPORT

1шт.

3

14M7273

NUT

M8

4шт.

4

19M7785

SCREW

M10 X 25

6шт.

5

14H807

NUT

7/16"

2шт.

6

12H293

LOCK WASHER

7/16"

2шт.

7

R41778

BOLT

2шт.

8

14M7296

FLANGE NUT

M10

4шт.

9

BASE

(SUB AT169499)

1шт.

10

T81804

SUPPORT

2шт.

11

19M7786

SCREW

M10 X 30

4шт.

12

T49984

ANGLE

2шт.
