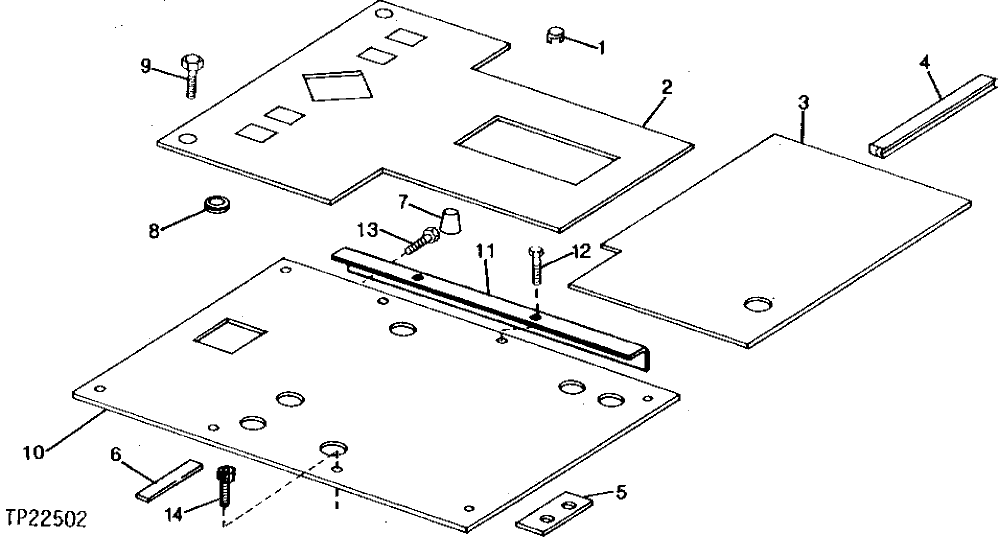

Запчасти John Deere 90CR 18 - CAB PLATFORM 1810 - OPERATORS STATION 18

1

4509404

GROMMET

(SUB FOR TH100553)

4шт.

2

2021139

MAT

(SUB FOR T81276)

1шт.

3

3032392

MAT

(SUB FOR T81275)

1шт.

4

4166260

ISOLATOR

(SUB FOR T81277)

1шт.

5

4174058

STRAP

(SUB FOR T81273)

4шт.

6

7016640

BUSHING

(ALSO ORDER (3) TH108051) (SUB FOR TH108050)

1шт.

19M7789

SCREW

M12 X 30, CAB SHELL TO PLATFORM WELD NUTS

4шт.

7

4150707

GROMMET

(SUB FOR TH101633) (SUB FOR TH102009)

1шт.

8

T81274

PLUG

4шт.

9

19M7658

CAP SCREW

M10 X 50

2шт.

10

TH108051

ISOLATOR

3шт.

11

ANGLE

( AT84079 NO LONGER AVAILABLE) CAB SHELL TO PLATFORM

1шт.

12

19M7789

SCREW

M12 X 30, ANGLE TO PLATFORM

2шт.

13

19M7662

CAP SCREW

M10 X 30, CAB SHELL TO PLATFORM

2шт.

12M7066

LOCK WASHER

10 MM

2шт.

14

19M8440

SCREW

M10 X 25, CAB SHELL TO PLATFORM

2шт.

12M7066

LOCK WASHER

10 MM

2шт.
