Запчасти John Deere 90CR 4 - CAB REAR WINDOW 1810 - OPERATORS STATION 18

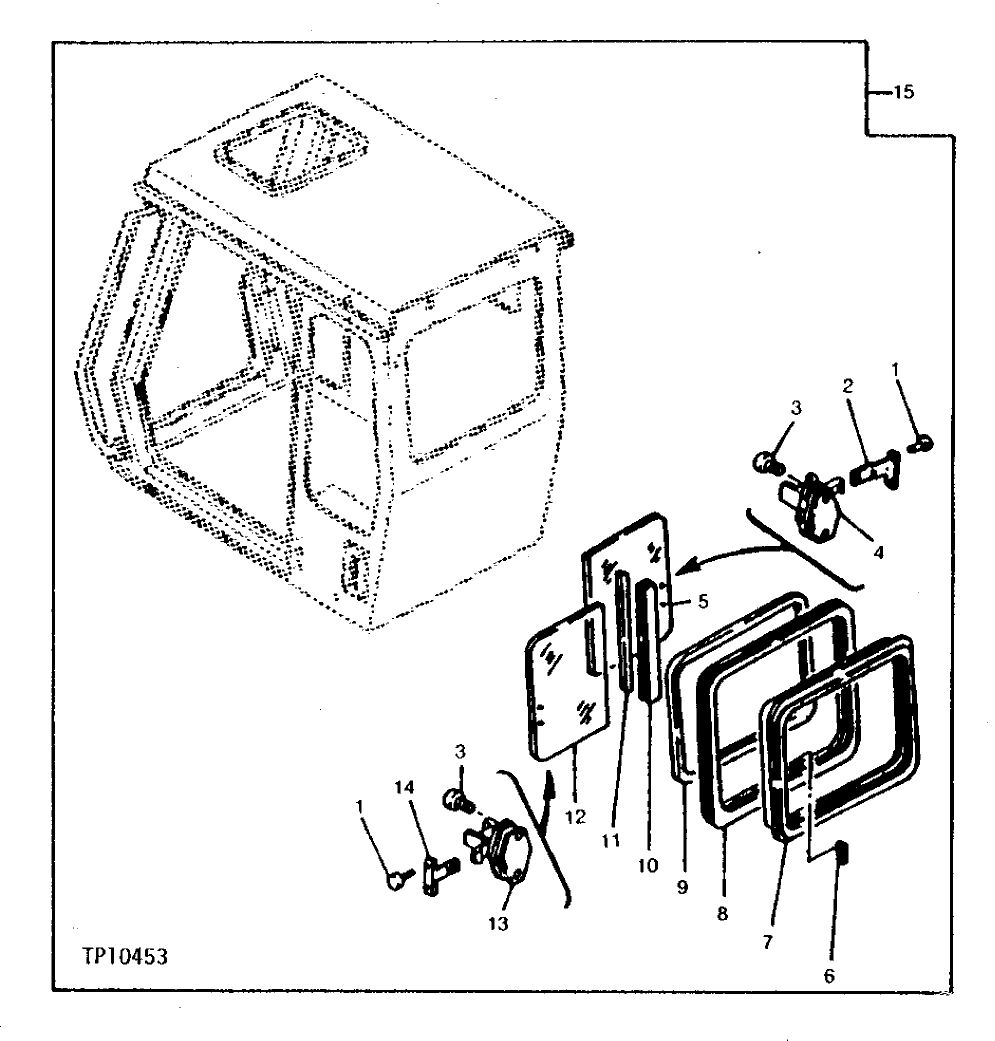

Схема запчастей John Deere 90CR - 4 - CAB REAR WINDOW 1810 - OPERATORS STATION 18

Артикул

Название

Примечание

Количество

1

4091422

RIVET

(SUB FOR TH101140)

4шт.

2

4158458

CATCH

(SUB FOR TH101137)

1шт.

3

M470413

SCREW

(SUB FOR TH101139)

4шт.

4

4084265

LOCK

(SUB FOR TH101136)

1шт.

5

TH101132

WINDOWPANE

2шт.

6

4084285

PLATE

(SUB FOR TH101141)

1шт.

7

4158453

FRAME

(SUB FOR TH101130)

1шт.

8

4091399

ISOLATOR

(SUB FOR TH101111)

1шт.

9

4158454

RUNNER

(SUB FOR TH101131)

1шт.

10

4158456

FRAME

(SUB FOR TH101133)

1шт.

11

4158457

WEATHERSTRIP

(SUB FOR TH101134)

1шт.

12

TH101132

WINDOWPANE

2шт.

13

4084265

LOCK

(SUB FOR TH101136)

1шт.

14

4388957

CATCH

( TH101138, 4084267 NLA)

1шт.

15

WINDOW

( TH101129 NO LONGER AVAILABLE, SUB INDIVIDUAL COMPONENTS)

1шт.

Выбрано товаров: 15
