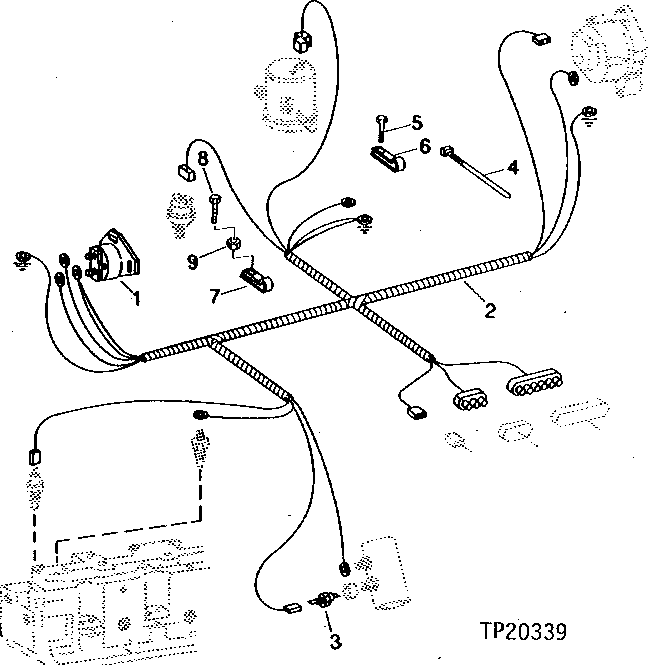

Запчасти John Deere 90CR 6 - ENGINE WIRING HARNESS 1674 - ELECTRICAL SYSTEMS 16

1

AT85258

RELAY

1шт.

19H1948

CAP SCREW

1/4" X 3/4"

2шт.

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

T82793

NUT

2шт.

21M7199

SCREW

M5 X 10

2шт.

AT105802

WIRING LEAD

1шт.

2

WIRING HARNESS

( AT79608 NO LONGER AVAILABLE)

1шт.

3

RE17515

SENSOR

STARTER SOLENOID

1шт.

15H73

COUPLING

1/8"

1шт.

4

R44302

TIE BAND

ARшт.

5

19M7866

SCREW

M8 X 20

1шт.

6

T75197

CLAMP

2шт.

03M7222

BOLT

M6 X 20, (HARNESS CLAMP TO MUFFLER SUPPORT)

1шт.

14M7303

FLANGE NUT

M6, (USE WITH 03M7222)

1шт.

7

T75276

CLAMP

1шт.

8

19M7866

SCREW

M8 X 20

1шт.

9

14M7298

FLANGE NUT

M8

1шт.
