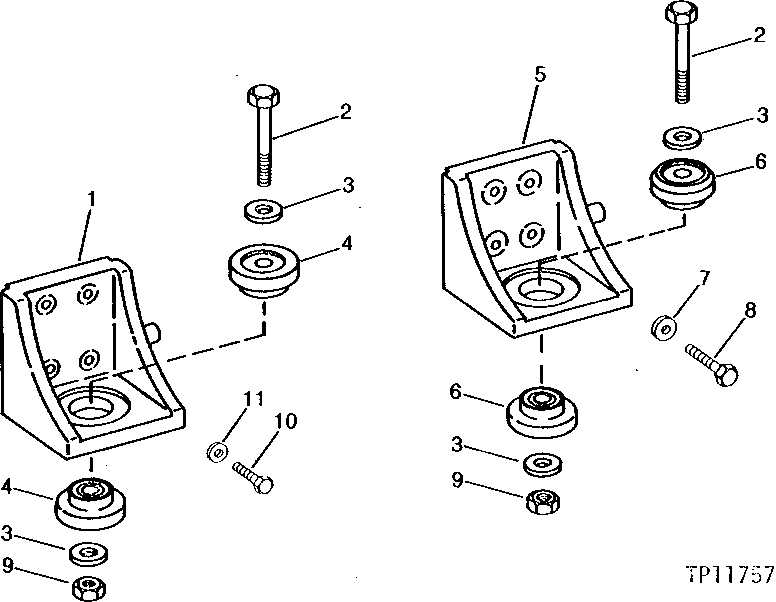

Запчасти John Deere 90CR 1 - FRONT AND REAR ENGINE MOUNTS 540 - ENGINE AUXILIARY SYSTEMS 5

1

SUPPORT

FRONT ( T78489 NO LONGER AVAILABLE)

2шт.

2

19H2310

CAP SCREW

7/8" X 6"

4шт.

3

T19572

WASHER

8шт.

4

AT77742

RUBBER MOUNT

4шт.

5

SUPPORT

REAR ( T78493 NO LONGER AVAILABLE)

2шт.

6

ISOLATOR

( AT72915 NO LONGER AVAILABLE)

4шт.

7

T10510

WASHER

(USE IF AVAILABLE)

8шт.

R78019

WASHER

(SUB FOR T10510)

8шт.

8

19H2431

CAP SCREW

3/4" X 2-1/4", (SUB FOR 19H1782)

8шт.

9

14H1051

NUT

7/8"

4шт.

10

19H2473

CAP SCREW

1/2" X 1-3/4"

8шт.

11

T20168

WASHER

8шт.
