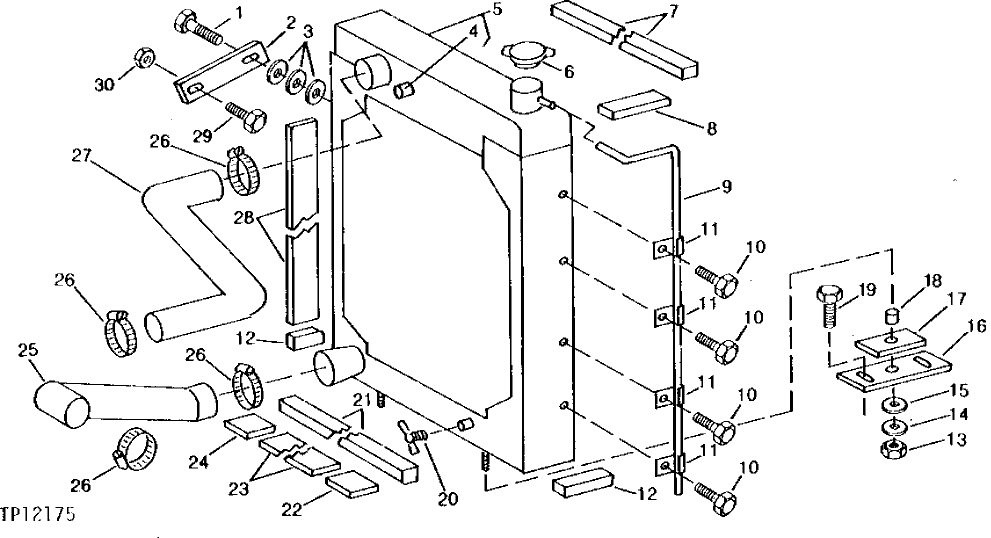

Запчасти John Deere 90CR 4 - RADIATOR, RADIATOR HOSES AND MOUNTING 510 - ENGINE AUXILIARY SYSTEMS 5

1

19M7784

SCREW

M10 X 20

1шт.

2

H80636

STRAP

(SUB FOR U42350, THIS APPLICATION)

1шт.

3

WASHER

(NO LONGER REQUIRED)

3шт.

4

AT47622

SIGHT PLUG

1шт.

5

AR27868

FILLER CAP

(SUB FOR AT79061)

1шт.

AT115124

RADIATOR

(SUB FOR AT114763) (ALSO ORDER (2) T108072)

1шт.

AT115124

RADIATOR

1шт.

6

AT165587

FILLER CAP

(SUB FOR AR27868)

1шт.

7

ISOLATOR

(MAKE FROM T71733 BULK MATERIAL, CUT TO LENGTH)

1шт.

8

ISOLATOR

(MAKE FROM T71733 BULK MATERIAL, CUT TO LENGTH)

1шт.

9

HOSE

(CUT TO 55.12") (MAKE FROM TY22324) (SUB FOR T75679)

1шт.

10

19M7784

SCREW

M10 X 20

8шт.

11

AH89557

CLIP

3шт.

12

ISOLATOR

(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)

2шт.

13

14M7299

FLANGE NUT

M12

2шт.

14

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

2шт.

15

U45315

WASHER

2шт.

16

T79226

STRAP

2шт.

17

U45318

STRAP

2шт.

18

M43318

BUSHING

2шт.

19

19M7786

SCREW

M10 X 30

4шт.

14M7296

FLANGE NUT

M10, (NOT ILLUSTRATED)

4шт.

20

AT13740

DRAIN VALVE

1шт.

21

ISOLATOR

(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)

1шт.

22

ISOLATOR

(MAKE FROM T71733 BULK MATERIAL, CUT TO LENGTH)

1шт.

23

ISOLATOR

(MAKE FROM T71733 BULK MATERIAL, CUT TO LENGTH)

1шт.

24

ISOLATOR

(MAKE FROM T71733 BULK MATERIAL, CUT TO LENGTH)

1шт.

25

T114536

RADIATOR HOSE

1шт.

26

AR21999

HOSE CLAMP

4шт.

27

T79228

HOSE

1шт.

28

WEATHERSTRIP

(MAKE FROM AT66778 BULK MATERIAL, CUT TO LENGTH)

1шт.

29

19M8162

SCREW

M10 X 40

1шт.

30

14M7296

FLANGE NUT

M10

1шт.
