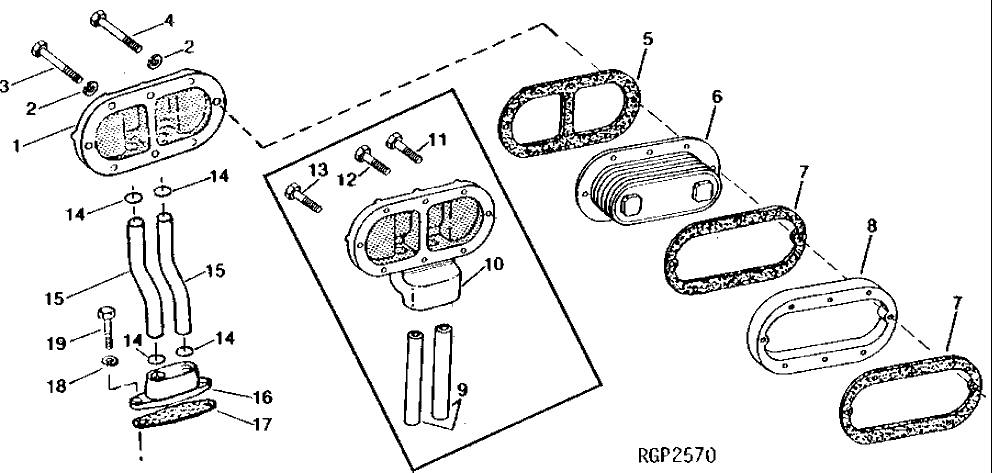

Запчасти John Deere 90CR 1 - ENGINE OIL COOLER 419 - ENGINE 4

1

R51283

COVER

1шт.

2

12H303

LOCK WASHER

5/16"

8шт.

3

19H1904

CAP SCREW

5/16" X 3"

1шт.

4

19H3636

CAP SCREW

5/16" X 2-1/2"

7шт.

5

R50419

GASKET

1шт.

6

AT25038

OIL COOLER

1шт.

7

AR58952

GASKET

2шт.

8

R50418

SPACER

1шт.

9

R50422

OIL TUBE

2шт.

10

R50421

COVER

1шт.

11

19H1907

CAP SCREW

5/16" X 2-3/4"

7шт.

12

19H1921

CAP SCREW

5/16" X 3-1/4"

1шт.

13

CAP SCREW

NAшт.

14

R47153

O-RING

4шт.

15

R83545

TUBE

2шт.

16

R50423

ADAPTER FITTING

1шт.

17

R50424

GASKET

1шт.

18

12H304

LOCK WASHER

3/8"

2шт.

19

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.
