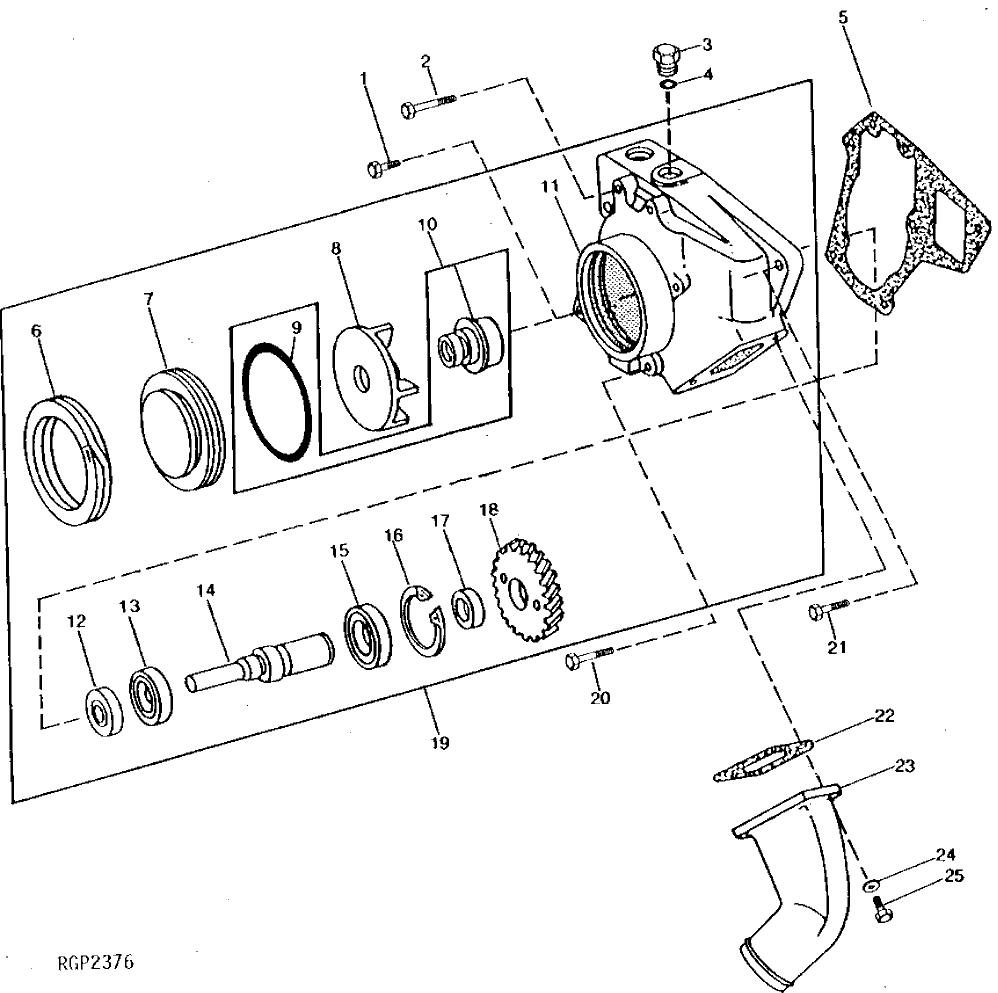

Запчасти John Deere 90CR 2 - WATER PUMP 417 - ENGINE 4

1

R39305

CAP SCREW

2шт.

2

19H2104

CAP SCREW

3/8" X 5"

3шт.

3

R27474

DRAIN PLUG

1шт.

4

R26906

O-RING

1шт.

5

R520580

GASKET

(SUB FOR R71315)

1шт.

6

R78696

SNAP RING

1шт.

7

R71226

COVER

1шт.

8

R71225

IMPELLER

1шт.

9

R71596

O-RING

1шт.

10

RE24772

KIT

(SUB FOR RE12940) (SUB RE69844)

1шт.

RE69844

KIT

1шт.

11

R71224

HOUSING

(SUB R83561)

1шт.

R83561

HOUSING

1шт.

12

AR93518

SEAL

1шт.

13

JD10171

BALL BEARING

(USE WITH R71224)

1шт.

JD10363

BALL BEARING

(USE WITH R83561)

1шт.

14

SHAFT

(SUB RG19280)

1шт.

15

JD10113

BALL BEARING

(USE WITH R71224)

1шт.

JD10362

BALL BEARING

(USE WITH R83561)

1шт.

16

R71228

RING

1шт.

17

R70964

WASHER

1шт.

18

R71037

GEAR

1шт.

19

AR93517

WATER PUMP

(MARKED R71224) (SUB RE23291)

1шт.

RE23291

WATER PUMP

(MARKED R83561) (SUB RE55985)

1шт.

RE55985

WATER PUMP

(SUB SE500912) (MARKED R83561)

1шт.

SE500912

WATER PUMP

1шт.

20

19H2996

CAP SCREW

5/16" X 5"

1шт.

21

19H2855

CAP SCREW

3/8" X 3-1/4"

1шт.

22

R71361

GASKET

1шт.

23

R79788

HOUSING

(SUB FOR R78351)

1шт.

24

12M7056

LOCK WASHER

(SUB FOR 12M7065)

2шт.

25

19M7513

CAP SCREW

M8 X 30

2шт.
